M742

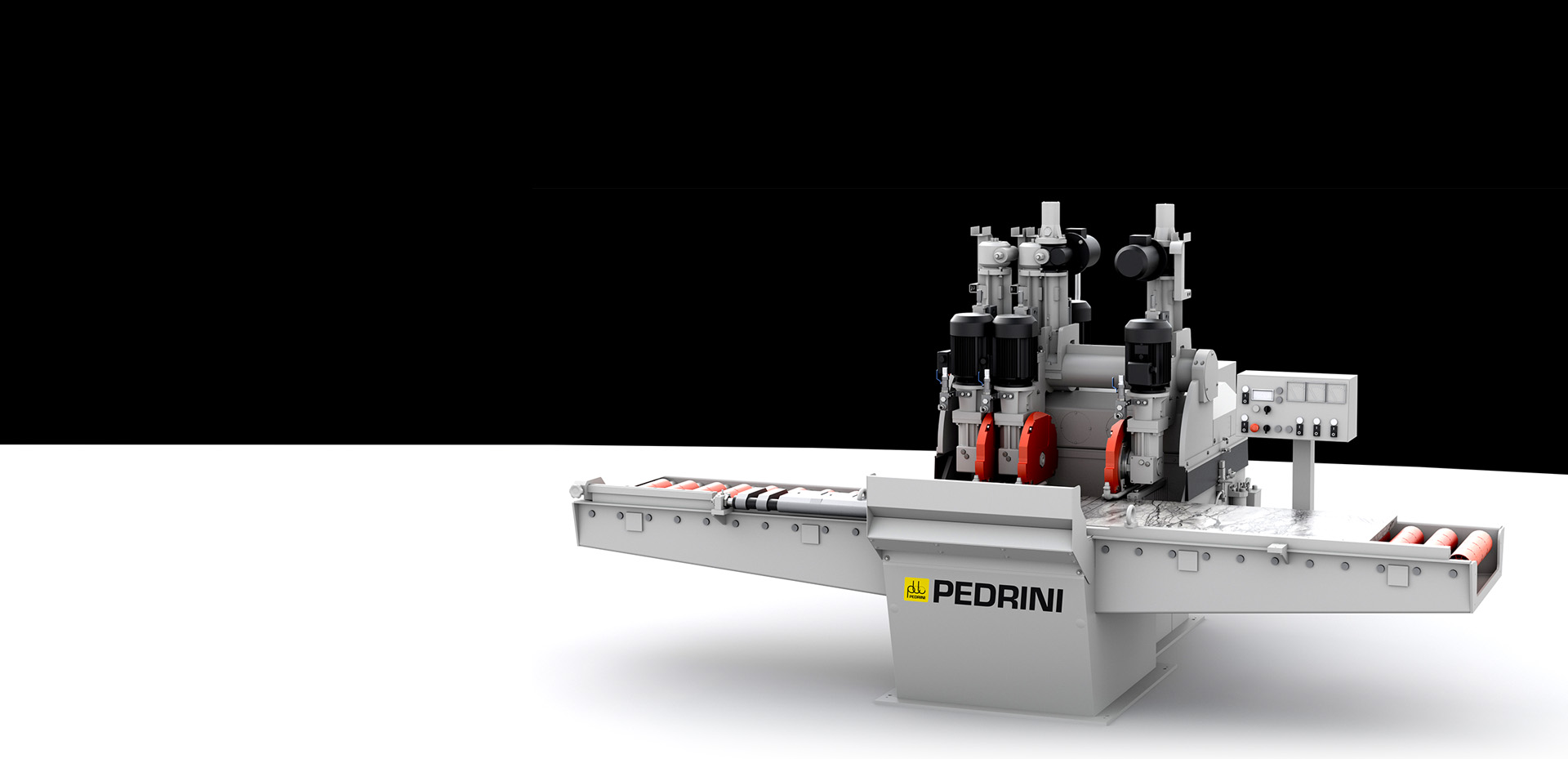

Multi-disc cross cutting machine for marble and granite

Download the catalogue
Fill out the form and you will receive the catalog by email

Description



Semi-automatic multi-disc cross cutting machine for crosswise cutting of trimmed marble and granite strips into finished elements.

It is mainly used for finishing lines where high forwarding speeds are not required.



Disc spacing adjustment is achieved by a motorized system, and a clamping unit stabilizes the strip during cutting.

Appropriate retainers allow for accurate measurement even with the disc positioned on the exit side.



Download the catalogue
Fill out the form and you will receive the catalog by email

Technical data

Machine
Technical data
Technical Data
UM
M742
Processed width
mm
200 ÷ 650
Maximum thickness
mm
35
Number of disc-holder heads
-
2 - 3
Disc diameter
mm
350
Machine length
mm
4000
Machine width
mm
2600
Machine height
mm
1550
