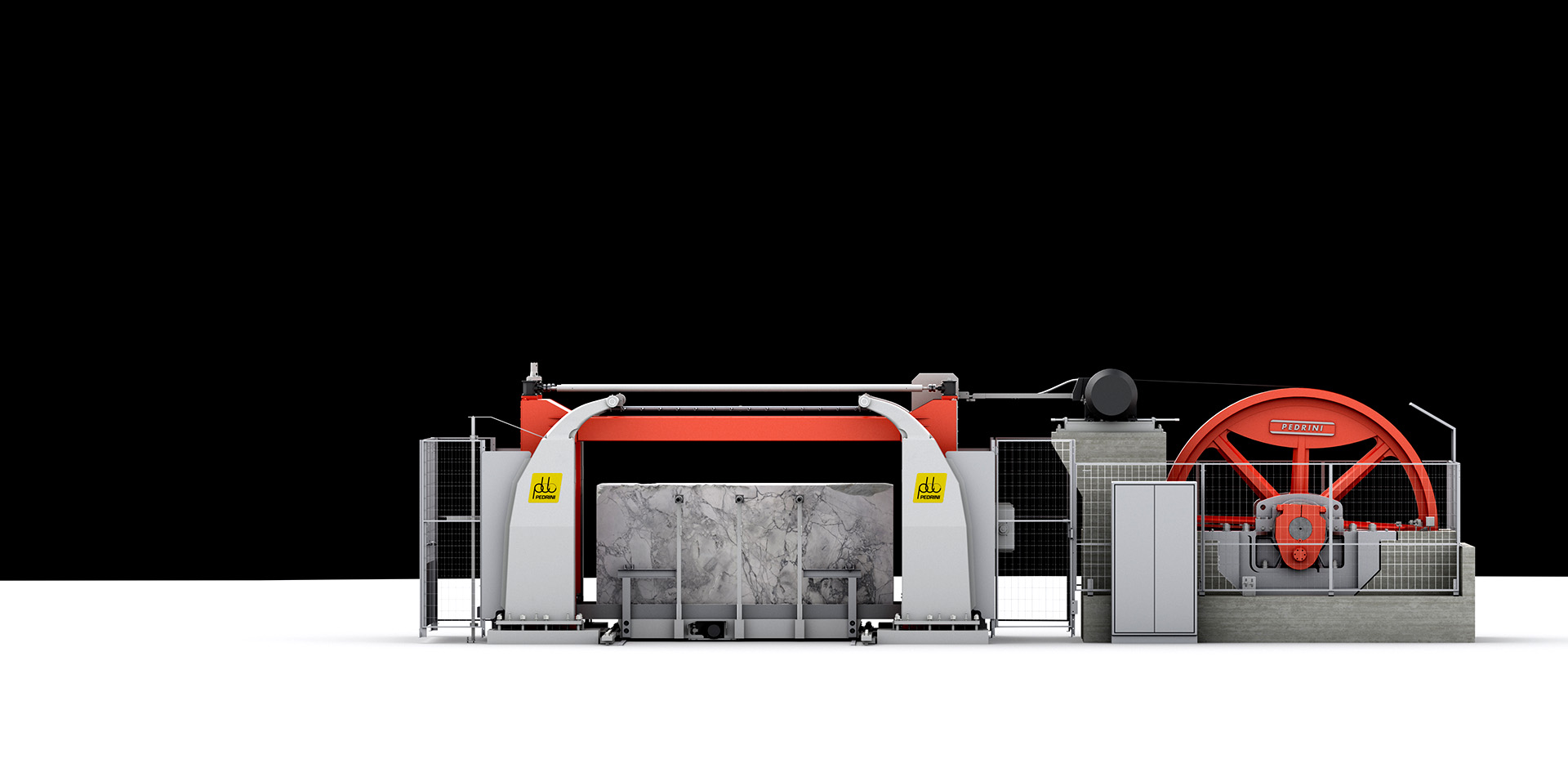

Open frame saw GS122

Description

GS122 is a multi-blade open frame gang saw for rapid cutting of marble blocks by means of diamond blades.

Open frames gang saws are mainly used for sawing irregular blocks and where large production are not required.

The columns, built with heavy cast iron, support the special frame guiding units, which consist of an extremely rigid structure that allows the blade stack to be used at maximum tension.

Tensioning of the blades is accomplished by means of a hydraulic tensioner equipped with a pressure compensator through special steel tie-bars.

Key features

Practical

Characterized by very high dynamic balance, extreme sliding smoothness and absence of vertical and transverse clearance in time which drastically reduces maintenance costs

Solid

Built with an extremely rigid structure that allows the arrangement of the blade stack over considerable width while using maximum tension

Configurations

GS122 gang saws are offered in 3 versions depending on the working width of the blade-holder frame:

30 blades - 40 blades - 50 blades

Due to their exceptional productivity, the 40- and 50-blade versions are also particularly suitable for the "on the ground" sawing of large and regular blocks of fragile materials, achieving excellent quality results with difficult materials such as lava stone.

To learn more download the catalogue

Technical data

Machine

Technical data

Technical Data

GS122-L30

GS122-L40

GS122-L50

Number of blades

Width of the blades carrying frame

1000

1200

1500

Useful cutting height

2000

Useful cutting length

3200

Minimum thickness

11 o 15

Machine length

10800

11000

Machine width

3000

3400

4000

Machine height

3250
