GS131

80-blade gang saw for marble

Download the catalogue
Fill out the form and you will receive the catalog by email

Description



GS131 is a modern-designed gang saw for the rapid cutting of marble blocks by means of diamond blades working with fixed-height blade-holder frame and lifting block-holding platform.



The 80-blade gang saw represents the synthesis of tested technical solutions and the most advanced construction technologies: it allows for high cutting stroke, long cutting stroke and ensures accurate cuts even at the highest lowering speeds. The special "pendulum" system that allows frictionless movement of the blade-holder frame makes this machine smooth and efficient.



The large dimension of all mechanical parts makes it a machine of very high quality, strength and reliability thus providing the user maximum performance over time.

Key features

Efficient

The special "pendulum" system allows frictionless movement of the blade-holder frame

Versatile

Available in versions with front or side block carrier trolley

Flexible

It allows simultaneous handling of block cutting with different thicknesses

To learn more download the catalogue
Fill out the form and you will receive the catalog by email

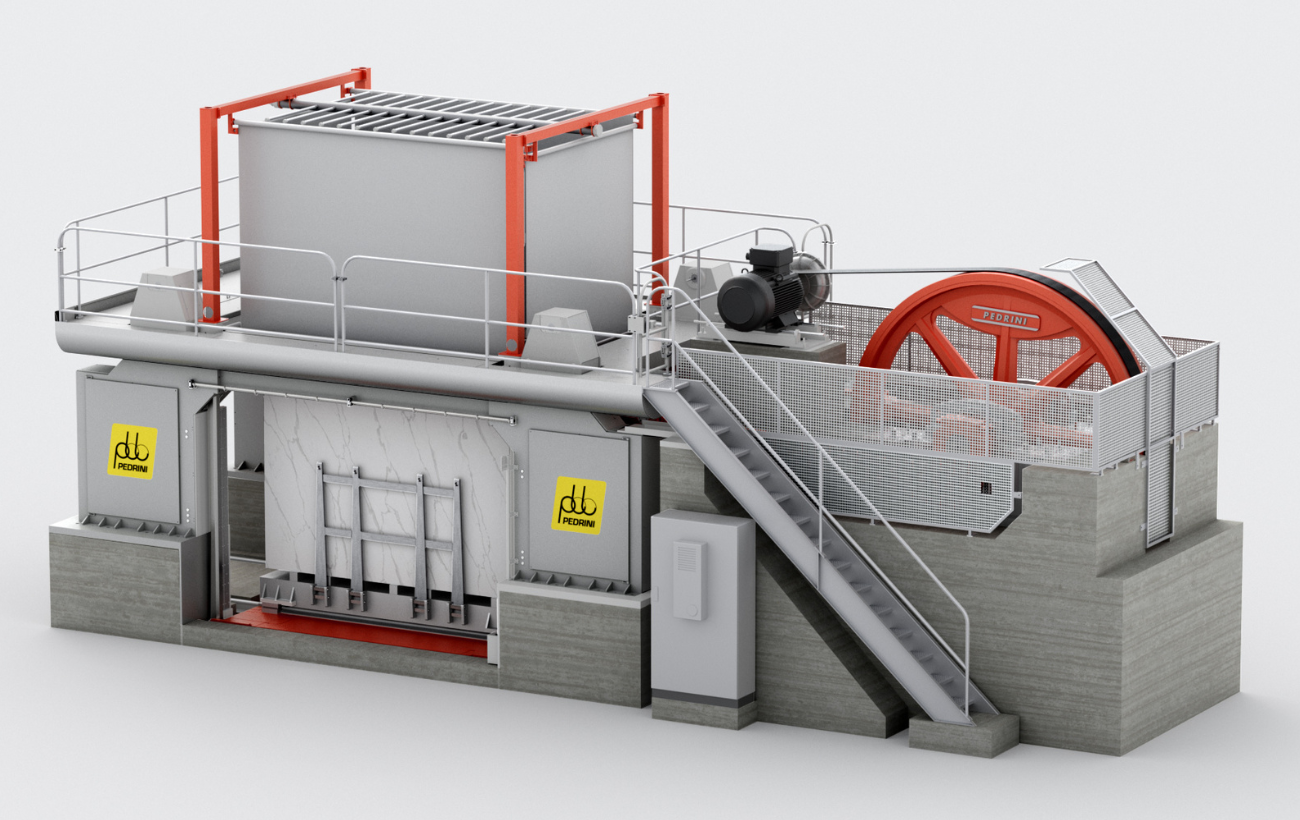

Machine components

progetto-senza-titolo-2023-05-02t172937-131
Pendulum system Blade-holder frame Flywheel assembly
progetto-senza-titolo-2023-05-02t173020-560
Pendulum system

The blade-holder frame is supported and guided by four groups with a "pendulum" system. Each unit consists of two opposing pendulum arms hinged on the column and connected by a compensator. With this technology, the cutting effort is always equally divided over 8 swing points ensuring straight and frictionless stroke.

progetto-senza-titolo-2023-05-02t173037-751
Blade-holder frame

The blade-holder frame is housed inside the machine and has an alternating movement at a fixed height. The closed structure, highly resistant, allows the diamond blades to be tensioned evenly and straight.

progetto-senza-titolo-2023-05-02t173103-668
Flywheel assembly

The heavy eight-spokes flywheel and two welding free connecting rods regulate the movement of the blade-holder frame

Technical data

Machine
Technical data
Technical Data
UM
GS131-M80
GS131-M100
Maximum number of blades
-
80
100
Useful cutting length
mm
3250
3250
Useful cutting width
mm
2000
2500
Useful cutting height
mm
2100
2100
Machine length
mm
12800
12900
Machine width
mm
4500
5000
Machine height
mm
5400
5400
