Bridge saw for marble Lux M920

Description

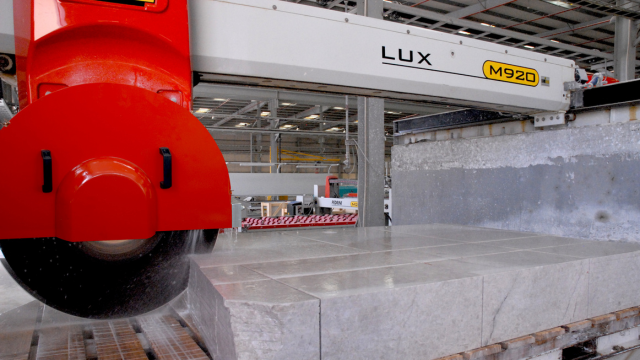

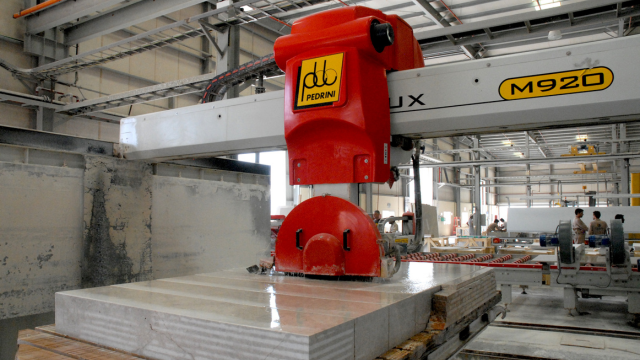

The LUX M920 bridge saw cuts slabs and semi-finished products of marble, granite and other natural stones by means of a diamond disc.

LUX M920 is highly competitive and efficient, its sturdy structure and easy operation ensure perfection and linearity of the vertical and bevelled cutting performance.

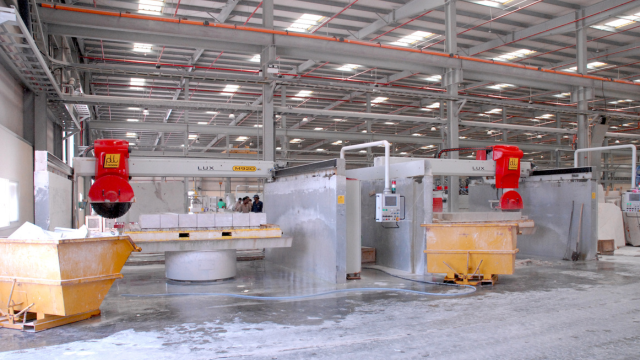

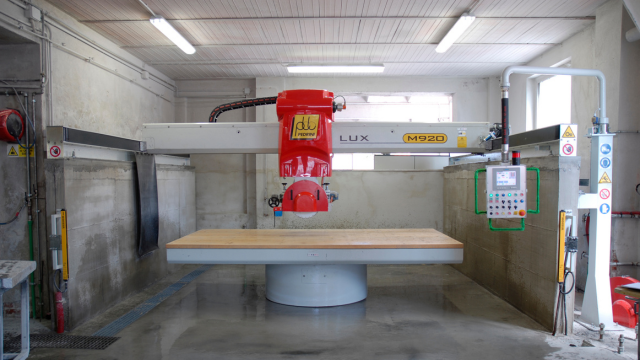

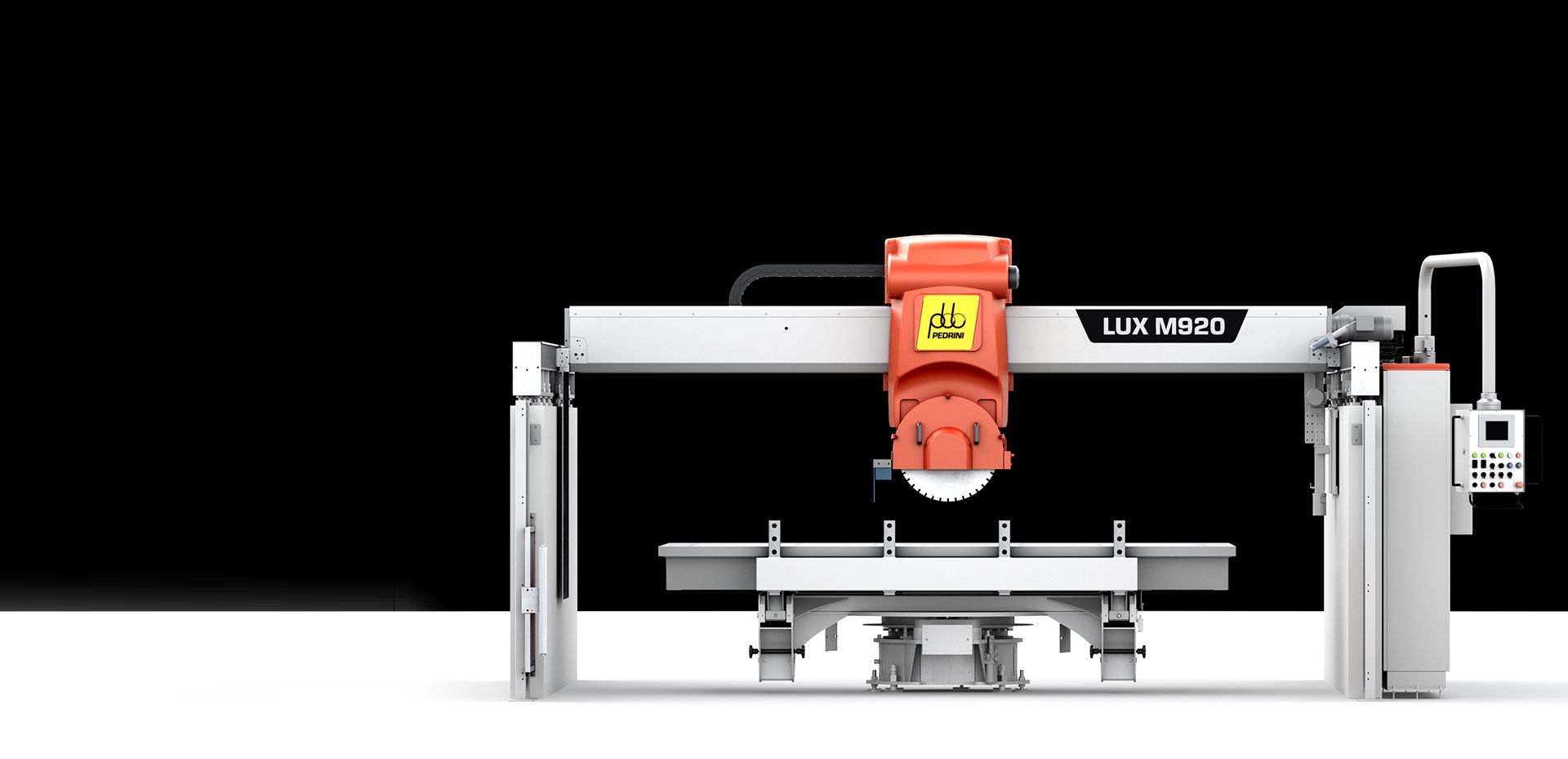

The structure is mainly composed of a bridge and a mobile disc-holder trolley. Two bridge crossbeams are fixed to concrete walls.

The exclusive "V" shaped double guides that linearly and constantly drive the disc-holder trolley along the bridge are machined onto the upper part of the bridge.

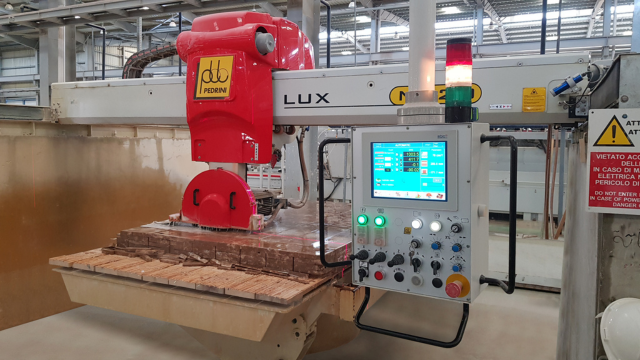

The machine is programmable through a big size colour touch-screen monitor.

The rotating bench is available in various models.

Key features

Flexible

It can be customized according to different processing needs and supplemented with accessories

Practical

It can be programmed from a mobile console that houses a large touch-screen monitor equipped with all the necessary controls for manual positioning of the working axes

Versatile

It is also available in a version with a longer stroke for working on two benches

Configurations

M920 can be equipped with different types of bench:

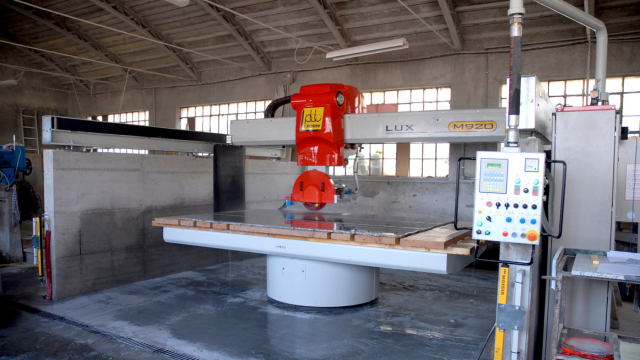

Motorized rotating bench

with 360° rotation set from the panel and shown on the display, controlled by inverter and equipped with encoder

Tilting bench

with oleo-dynamic system, motorized rotation and pneumatic locking in any position

Technical data

Machine

Technical data

Technical Data

LUX M920GR

M920GR-F

LUX M920-D900

Maximum disc diameter

625

900

Maximum working thickness

200

310

Machine width

6000

Machine length

4900

Machine height

2800
