Arco di Trionfo M594 – M596

Cutting centre for granite blocks

Download the catalogue
Fill out the form and you will receive the catalog by email

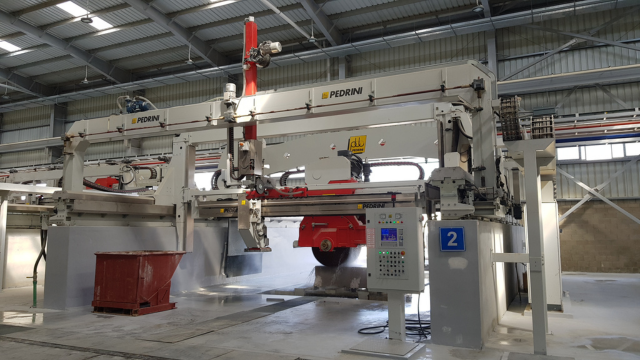

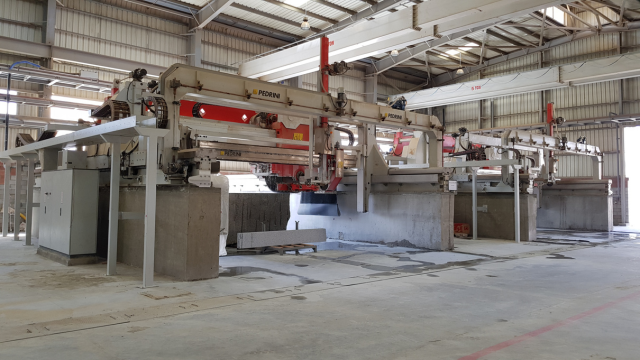

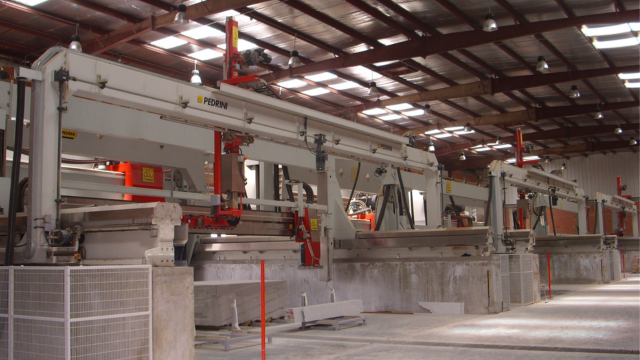

Description



The Arco di Trionfo cutting centre has been designed for cutting granite blocks and other types of natural stones by means of a series of water-cooled diamond discs to obtain strips with predefined thickness and height.



This machine consists of three operating units: the vertical discs bridge, the horizontal disc bridge and the automatic unloader bridge. They all act in perfect synchronism, running on two side tracks.



Arco di Trionfo is available in two models - M594 and M596 - which can be customized according to the maximum size that can be obtained and the production quantity required.



Blocks to be cut are moved to the cutting area by special motorized block carrier trolleys. The cutting centre is easily programmed from a console, placed on the machine, with a user-friendly colour screen that allows management and display of the various processing cycles.

Key features

Practical

It is easily programmed from a console with a user-friendly colour screen that allows management and display of various processing cycles

Versatile

It is available in M594 and M596 types, both of which can be customized according to the maximum size that can be obtained and the production quantities required

Solid

Built with normalized heavy carpentry components that form an extremely compact, agile and fast structure

Configurations

Arco di Trionfo is available in two versions.

M594

It consists of three independent units: vertical discs, horizontal disc and automatic unloader with suction cups.

Blocks are driven into the cutting area by one large block carriage.

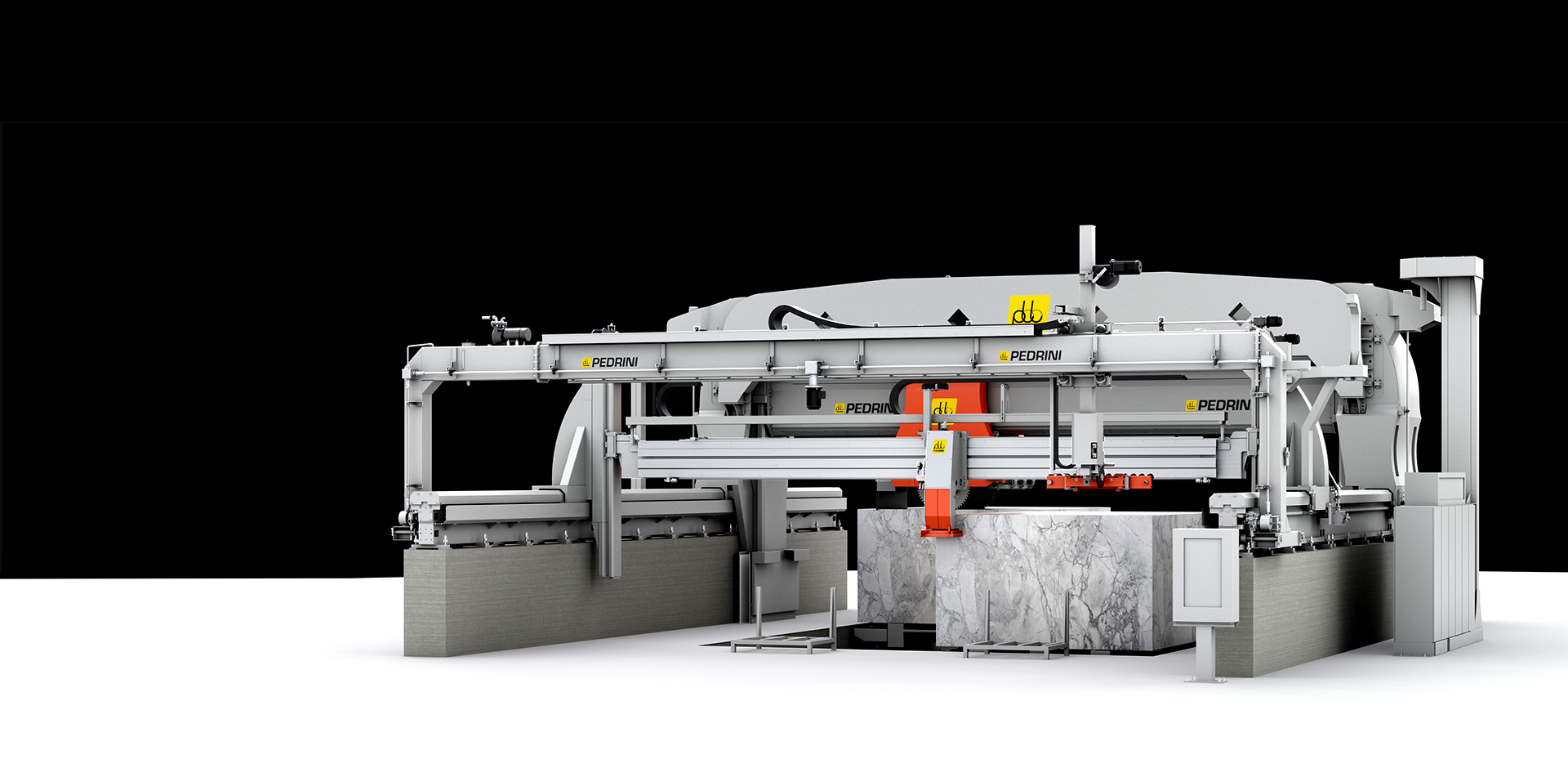

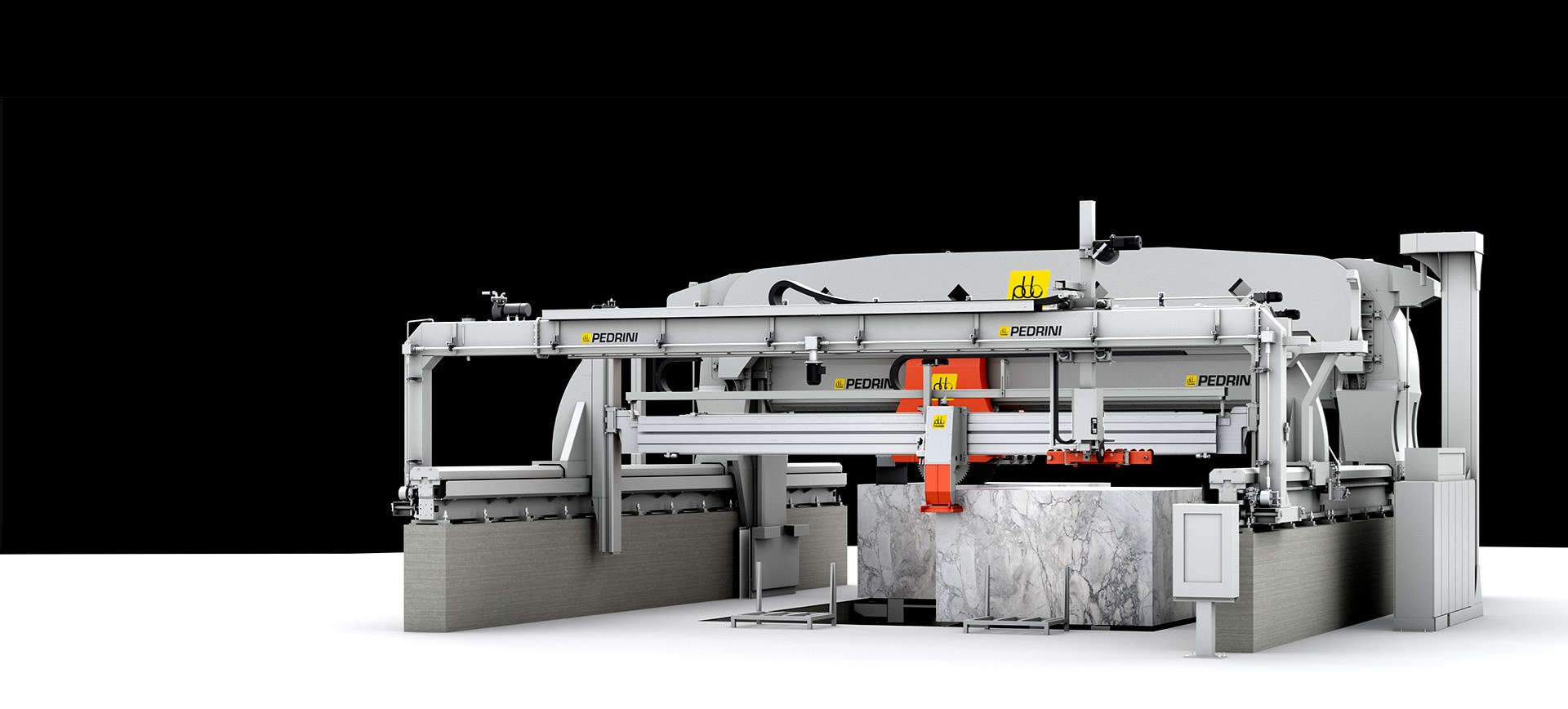

M596

The three operating units have double width and move synchronously on the same tracks.

It works with two independent trolleys that alternate positions for vertical and horizontal cutting, ensuring 24-hour work cycles.

To learn more download the catalogue
Fill out the form and you will receive the catalog by email

Machine components

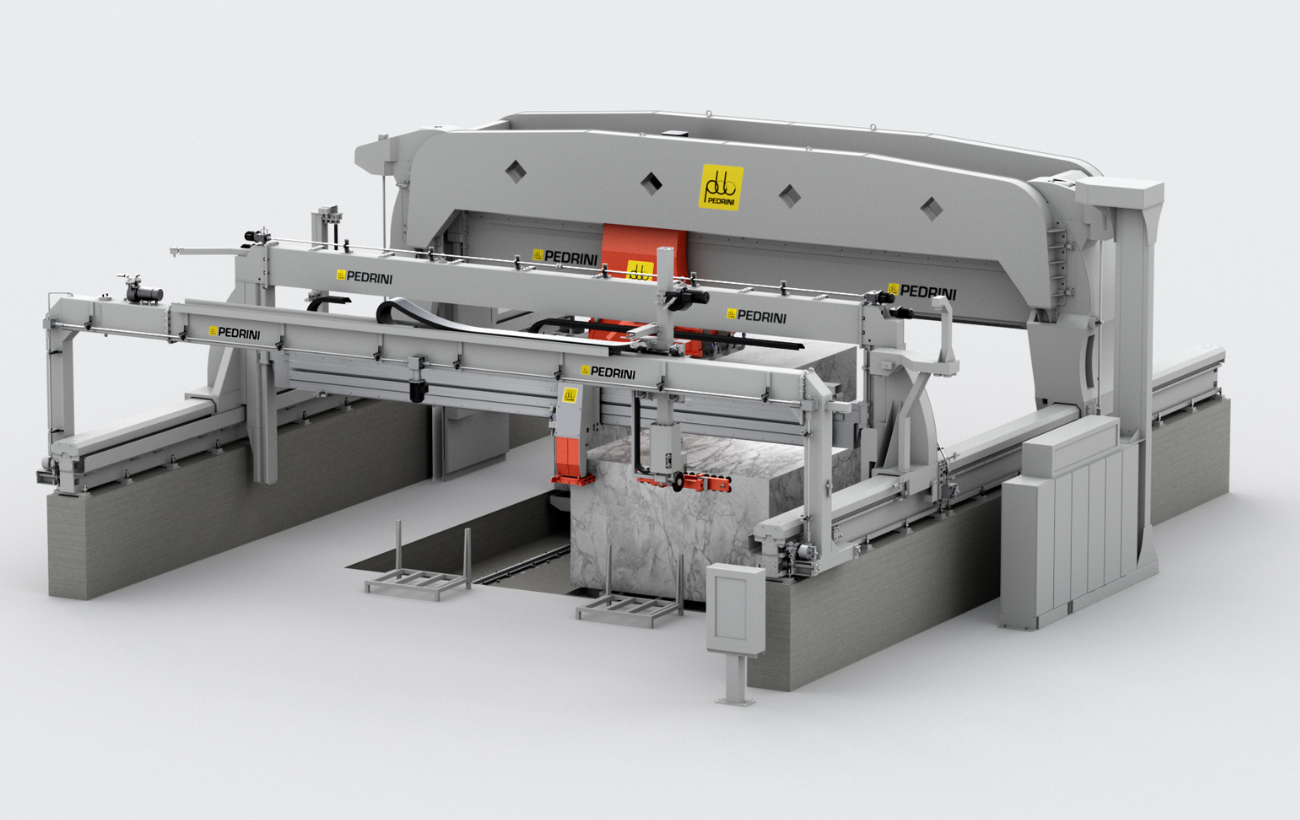

progetto-senza-titolo-2023-05-02t171304-259
Horizontal disc assembly Automatic unloader Vertical disc carriage
progetto-senza-titolo-2023-05-02t171840-583

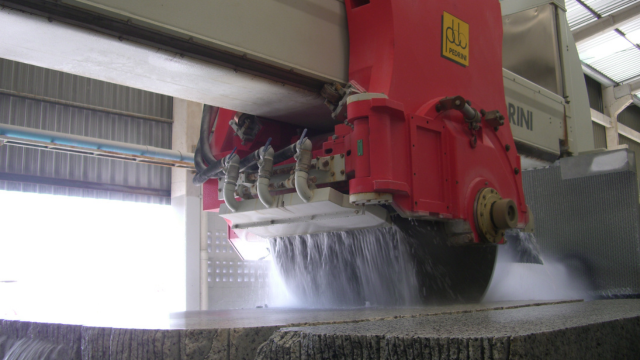

Horizontal disc assembly

The horizontal disc unit uses a 350-mm-diameter diamond disc that enables the cutting of strips up to 30 mm thick.

progetto-senza-titolo-2023-05-02t171935-351
Automatic unloader

The automatic strip unloader is made with a unique structure that slides on the outer sides of the two main tracks and interposes with the movement of the horizontal disc to unload the strips after the horizontal cutting is performed.

progetto-senza-titolo-2023-05-02t171704-436
Vertical disc carriage

The disc- holder trolley structure is the most important part of the Arco di Trionfo. Its smooth and continuous sliding on the bridge is enabled by the special V-shaped slides and four contrasting wheels that create a “clearance-free” movement.

Technical data

Machine
M594 – M596
Technical Data
UM
M594
M596
Maximum block length
mm
3500
3500
Maximum height (rought block)
mm
2250
2250
Maximum height (levelled block)
mm
2100
2100
Maximum outfeed strip length
mm
3500
3500
Maximum number of vertical discs
-
56
80
Machine width
mm
11000
15200
Tracks length
mm
13000
15500

Related machines

macchine-taglio-granito-m585
Cutting
M585

Multidisc block cutter
progetto-senza-titolo-2023-04-26t173719-336
Cutting
M702 – M705

Single and double disc automatic cross cutting machines
progetto-senza-titolo-2023-04-27t171506-387
Polishing and finishing

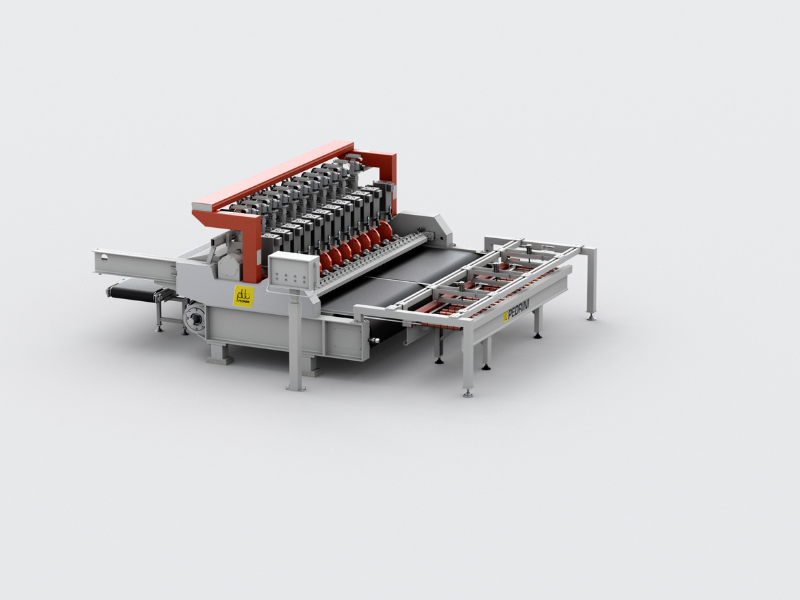

Supernova B065GV-B090GV
