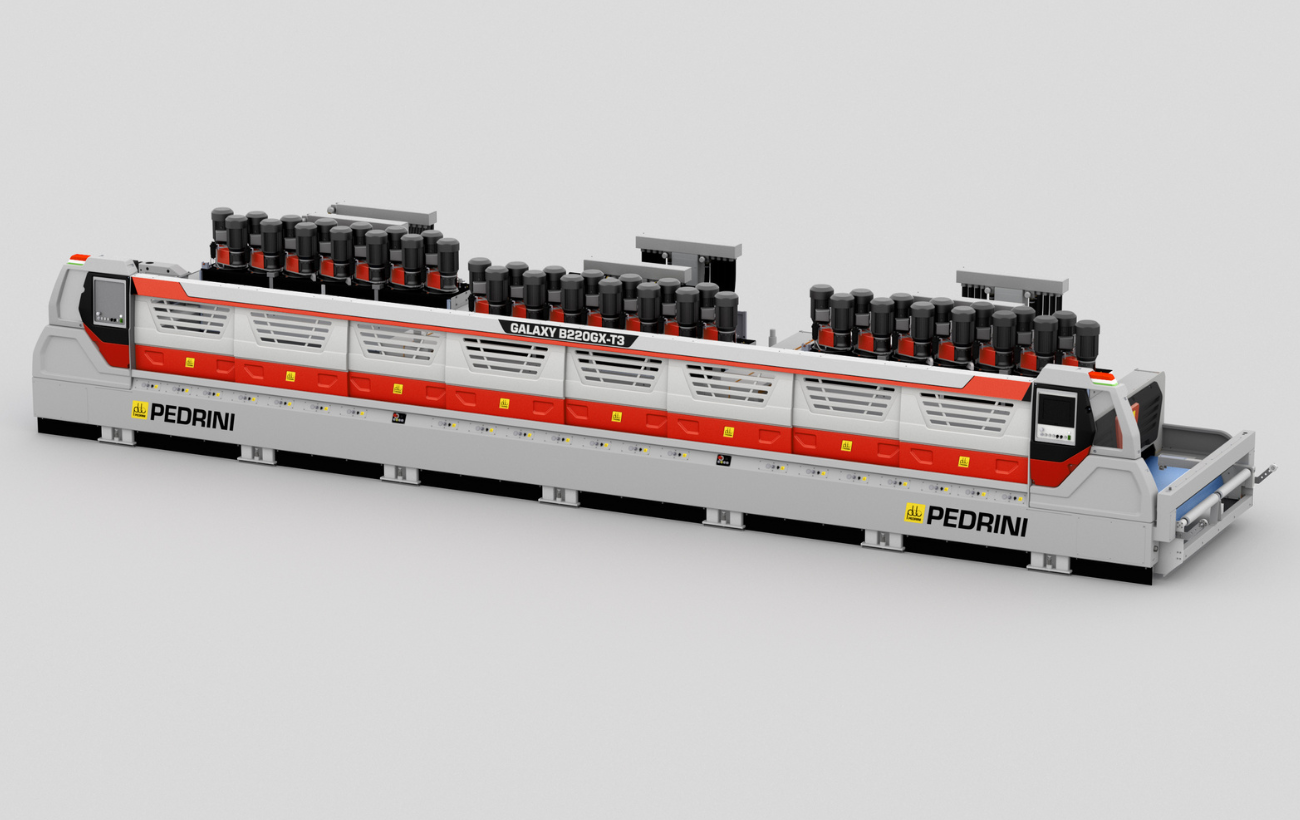

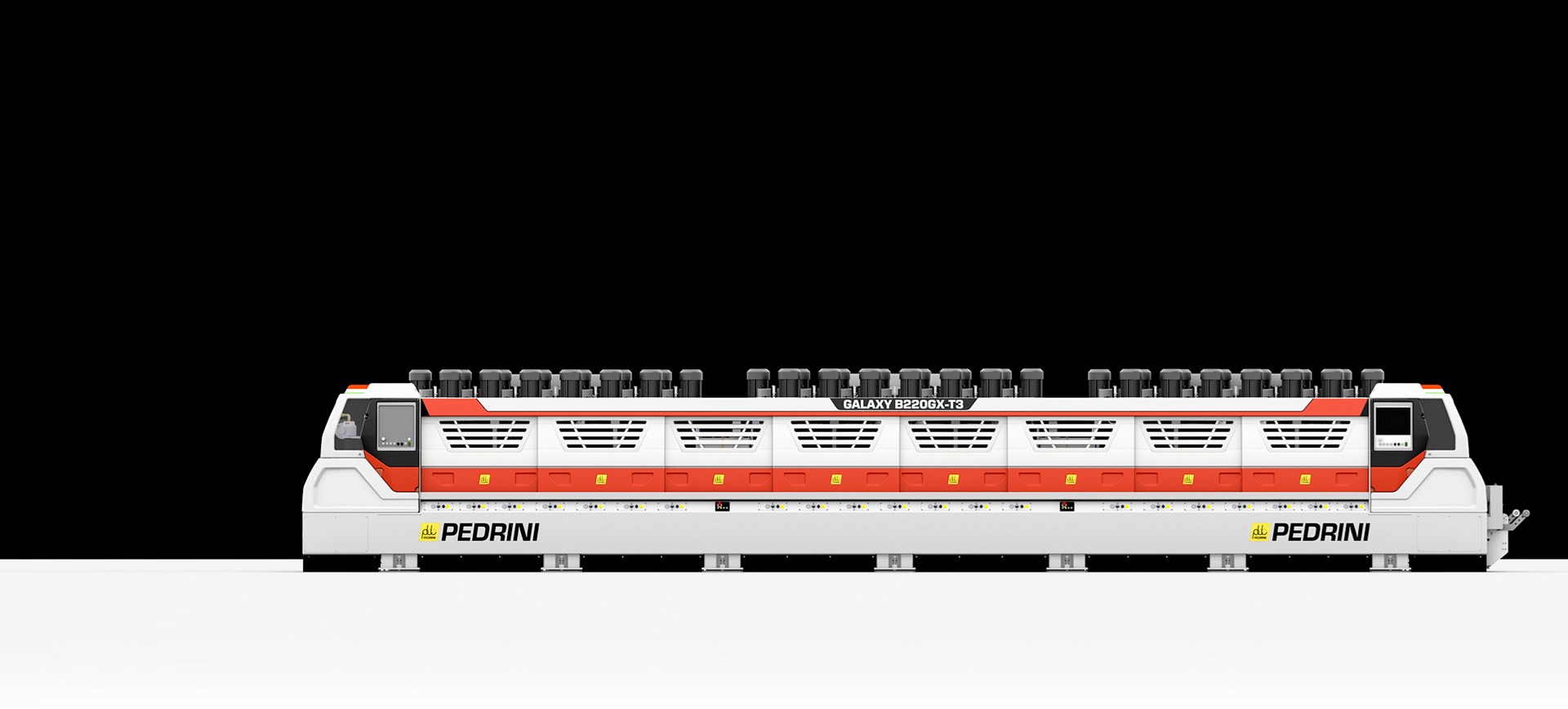

GALAXY B220GX-T3

Polishing machine for granite with three beams

Download the catalogue
Fill out the form and you will receive the catalog by email

Description



Galaxy B220-GX-T3 is the innovative slab polishing machine with 3 moving beams designed to perfect the slab polishing process as well as the processing of new stone materials.



Galaxy B220-GX-T3 moves the three beams synchronously or independently, allowing to simultaneously manage slabs with different widths without the need to completely empty the machine at each batch change, as is the case with single-beam polishers.



In addition, the three moving beams make it possible to optimize of the use of tools in the three processing phases: honing, pre-polishing and polishing.



Versatility at your fingertips


For its multi-beam polishing machine, Pedrini has developed QuickEase, the easy and intuitive software that enhance production. With its user-friendly interface and visually intuitive design, QuickEase allows operators toeffortlessly manage all production-related tasks with remarkable ease, speed, and versatility.

Key features

Efficient

Increased production capacity with reduced downtime

Effective

Tools optimisation thanks to different beam speeds

Innovative

State-of-the-art automation technology

Configurations

The Galaxy B220GX-T3 polishing machine is available in two versions:

B220GX-18-T3:

equipped with 18 polishing heads, 6 per moving beam

B220GX-21-T3:

equipped with 21 polishing heads, 7 per moving beam

To learn more download the catalogue
Fill out the form and you will receive the catalog by email

Machine components

linea-lucidatura-granito-Galaxy B220GX-T3
3 moving beams Rotor spindles Antishock head for polishing
progetto-senza-titolo-2023-05-02t164005-570
3 moving beams

The three beams can move synchronously or independently, allowing to simultaneously manage slabs with different widths. The beams are moved by means of pinion/rack systems driven by inverter-controlled motors.

progetto-senza-titolo-2023-05-02t162411-149
Rotor spindles

Rotor is the patented spindle that forms the technological heart of Galaxy B220GX-T3 and is made with a one-piece vertical slide assembly with positioning electronically controlled by transducer. It works with a pneumatic counterpressure system.

progetto-senza-titolo-2023-05-02t162432-126
Antishock head for polishing

The Antishock head with 7 tilting abrasive-holder levers is an exclusive Pedrini patent. It uses a special mechanism to obtain tilting and sequential motion of the 7 abrasives. The head accomplishes a perfectly linear contact between abrasives and material, achieving maximum performance.

Technical data

Machine
Technical data
Technical Data
UM
B220GX-18-T3
B220GX-21-T3
Number of spindles
-
18
21
Maximum slabs width
mm
2200
2200
Maximum slabs thickness
mm
100
100
Minimum slabs length
mm
1000
1000
Machine length
mm
13400
14900
Machine width
mm
3100
3100
Machine height
mm
2900
2900
