Genesis GS141 – GS142

Giant disc sawing machine

Download the catalogue
Fill out the form and you will receive the catalog by email

Description



GENESIS GS141 and GS142 machines, also called giant disc sawing machines, are designed to cut natural stone blocks -marble and granite- by means of one large-diameter diamond disc.

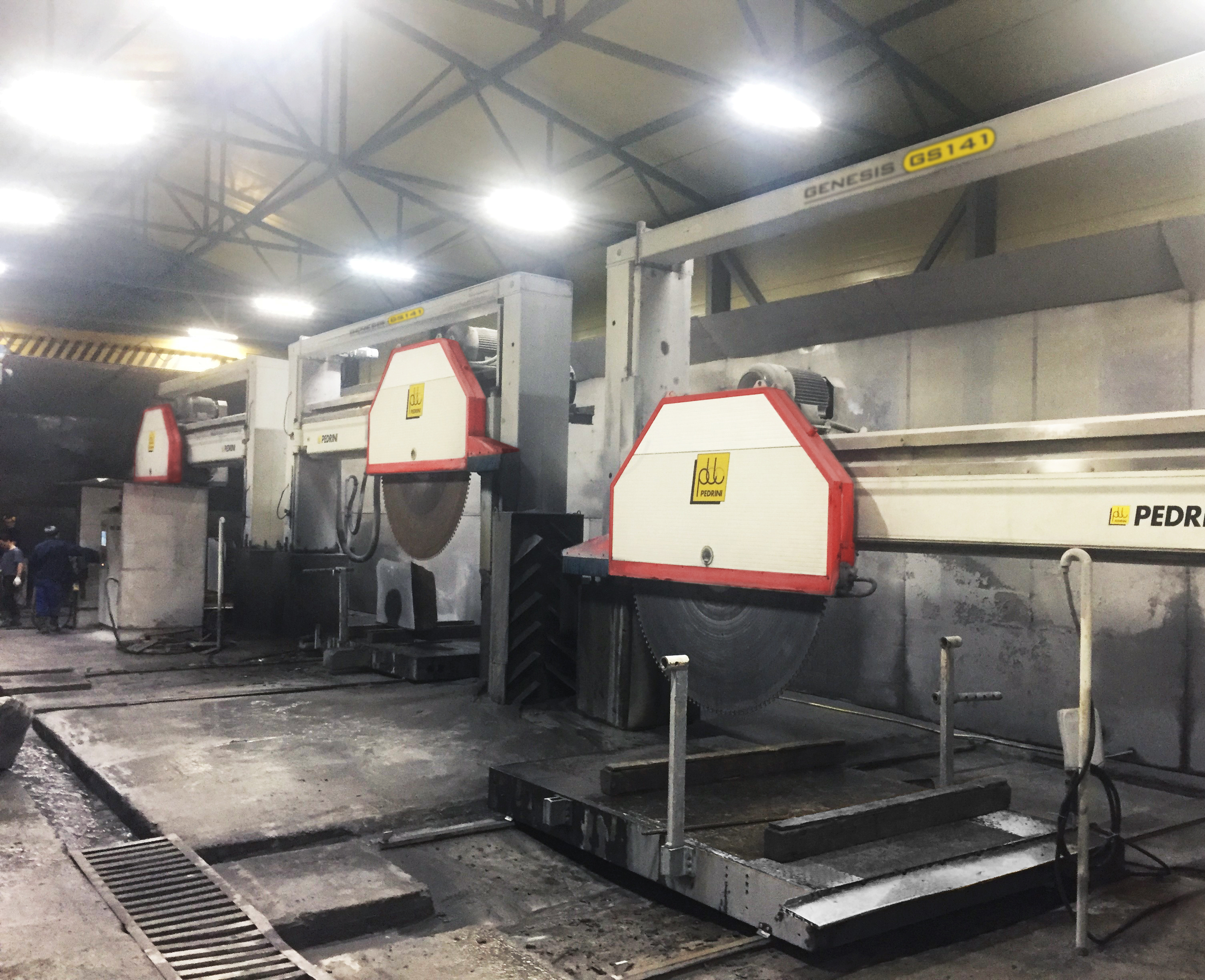

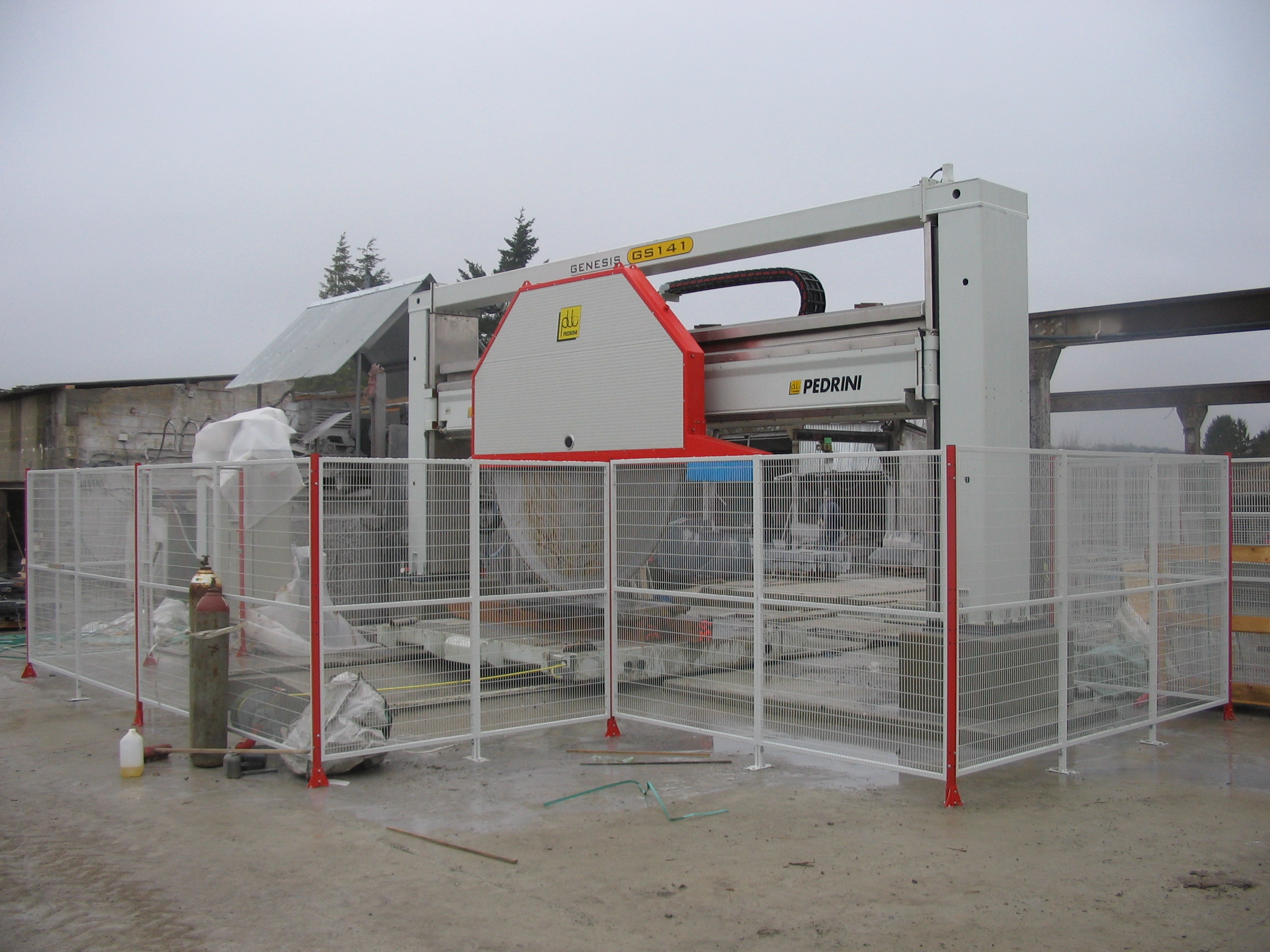

The model GS141 is a stationary machine that works exclusively with a mobile and motorized block carrier trolley.

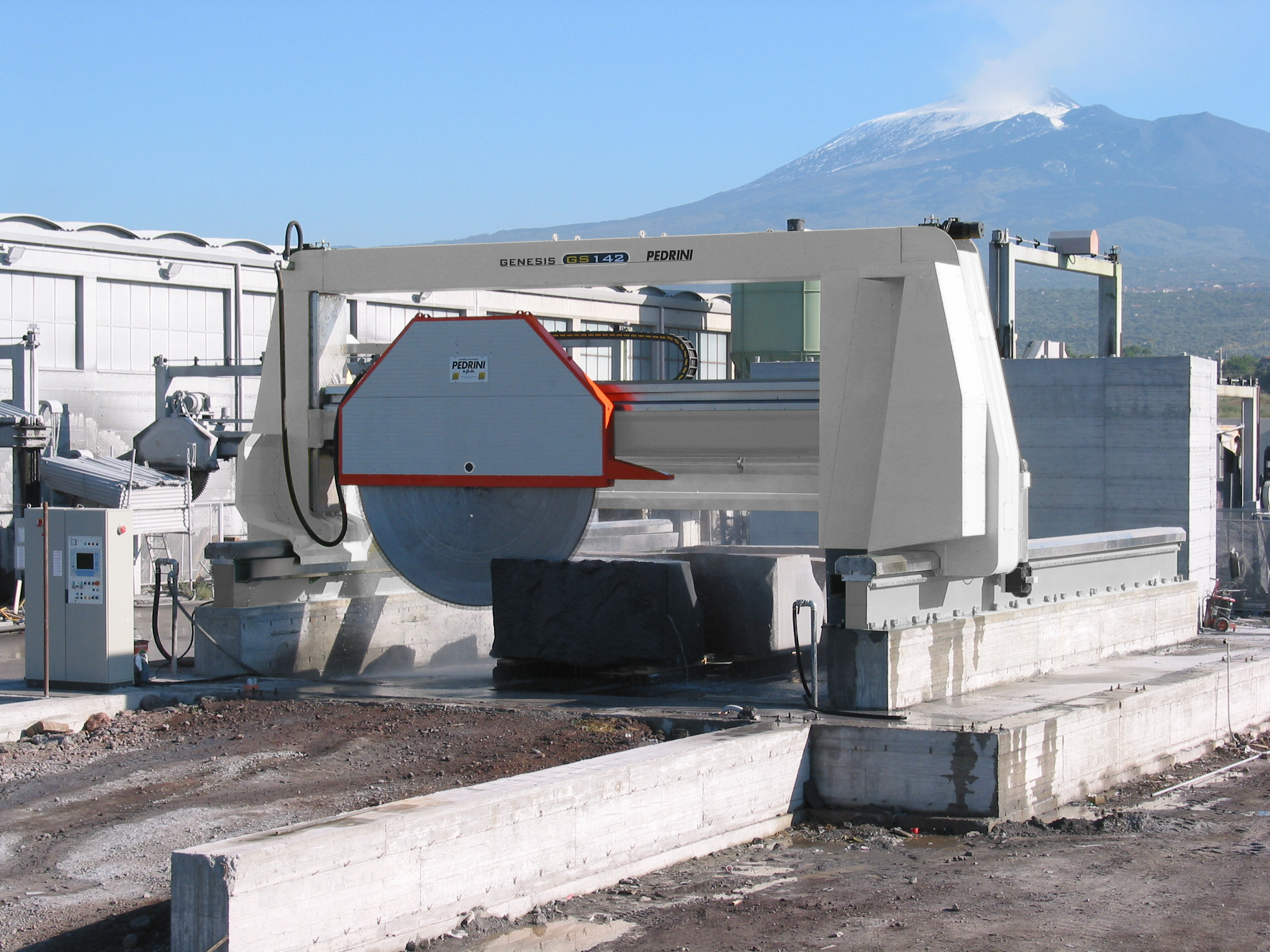

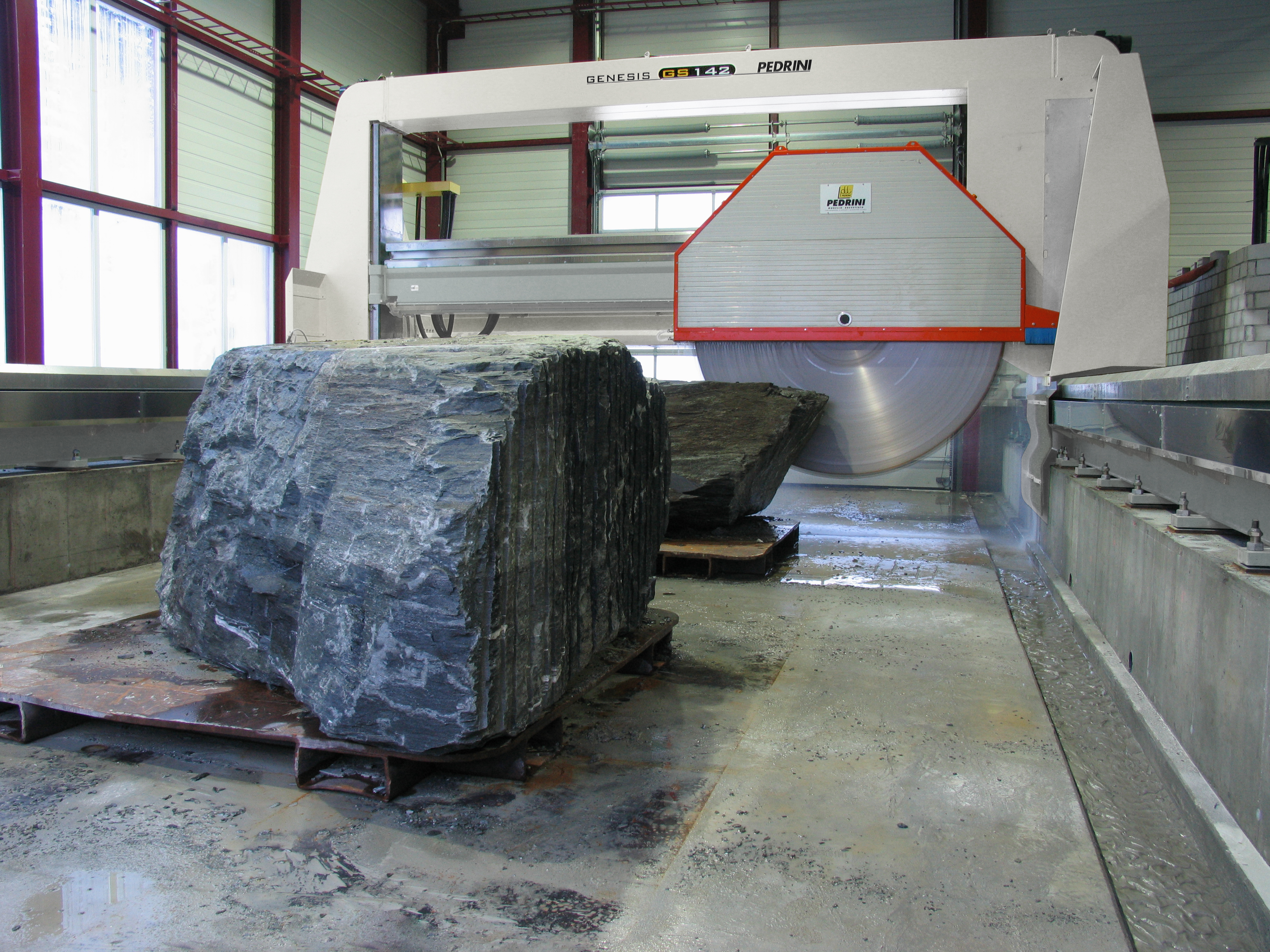

The model GS142 is a mobile machine that moves on two side rail tracks with blocks placed on the ground.

Key features

Flexible

It performs single or sequential cuts on blocks placed on the ground, allowing to program the cutting of several blocks with continuous work cycles

Reliable

It features strength and precision of the mechanical parts that make it extremely reliable and maintain its efficiency over time

Versatile

It is made in versions with specific motor power and peripheral speed for cutting marble, granite and other natural stones

Configurations

GENESIS giant disc saws are available in two models:

GENESIS GS141

is a stationary machine that works exclusively with a mobile and motorized block carrier trolley

GENESIS GS142

is a mobile machine that moves on two side rail tracks with blocks placed on the ground

To learn more download the catalogue
Fill out the form and you will receive the catalog by email

Machine components

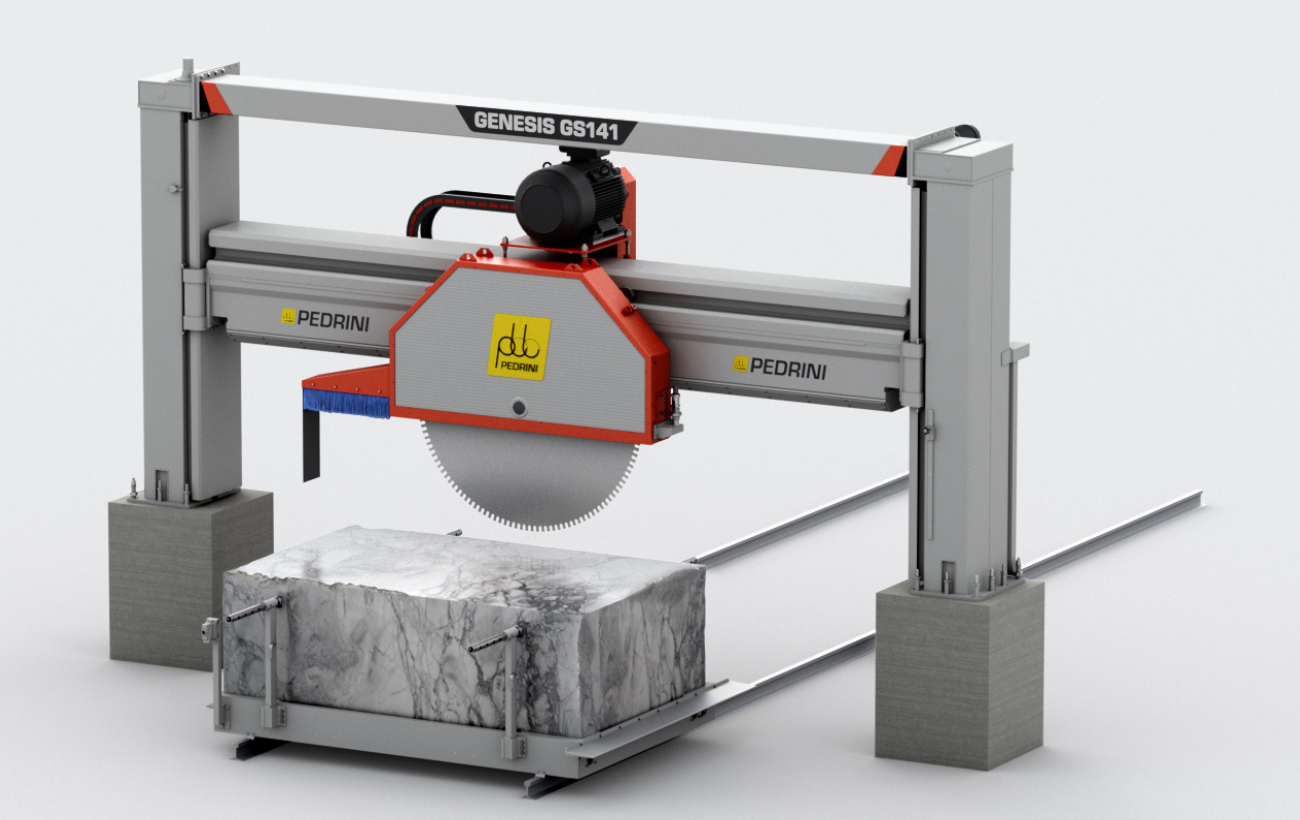

progetto-senza-titolo-2023-05-02t172231-052
Disc-holder trolley Disc-holder bridge
progetto-senza-titolo-2023-05-02t172518-491
Disc-holder trolley

It houses a set of important components such as the large protection cover, the water distribution for lubrication, the main motor of the vertical discs and a special device for spindle rotation speed control

progetto-senza-titolo-2023-05-02t172535-110
Disc-holder bridge

Built with a large honeycomb shaped structure free from bending and machined without displacement on the machine tool

Technical data

Machine
Technical data
Technical Data
UM
GS141
GS142
Maximum block length
mm
4000
4000
Maximum block width
mm
2100
Customizable
Maximum block height
mm
1800
1800
Disc diameter
-
2500 - 3000 - 3500
3500
