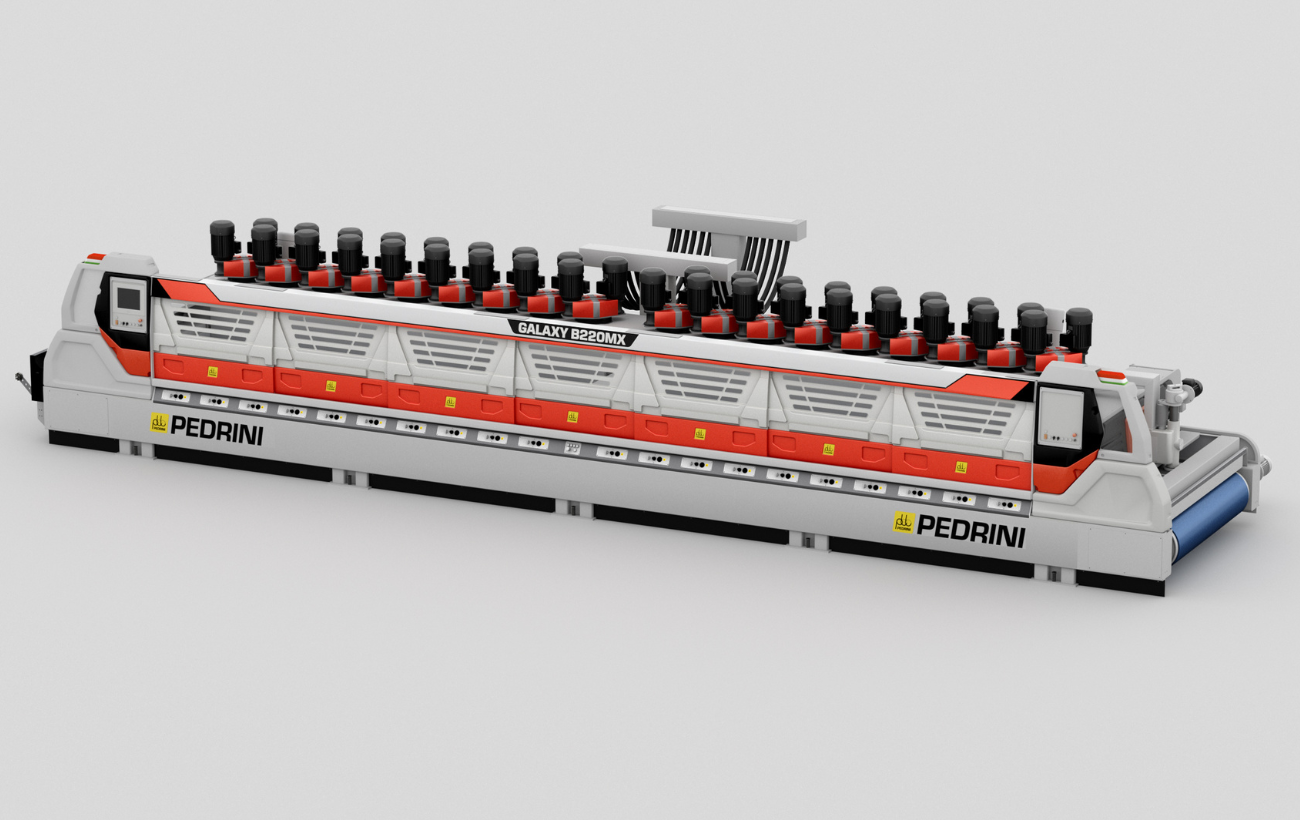

Galaxy B220MX
Polishing machine for marble slabs
Polishing machine for marble slabs
The perfect polishing of marble slabs on industrial scale requires a modern line equipped with state-of-the-art technologies. Pedrini provides the most complete solutions to meet the needs of each customer ensuring:
The polishing machine GALAXY B220MX works with a series of polishing plates equipped with abrasives with increasingly finer grain as the processed material proceeds from the machine entrance to the exit.
The polishing plates are mounted on exclusive Rotor spindles patented by Pedrini, characterized a system of counterpressure movements supplied as standard.
GALAXY B220MX is designed to meet the customer needs. Each polishing line is set according to the available space and customized through the use of a wide range of options, machines and auxiliary equipment designed to meet any type of production or automation need.
GALAXY B220MX, is the result of Pedrini’s technological know-how which, with many years of experience in the business, is a reliable partner able to answer with highly innovative solutions to the real plant engineering needs of companies that process natural stone.
Key features
Its basement is composed of a heavy normalized steel work single base designed to withstand stress during the processing operation
It can polish all types of marble with the utmost precision, preserving the integrity of the slab even at thicknesses as thin as 10 mm
It is designed, manufactured and installed to meet the customer's needs. Each polishing line is set according to the available space and customized through the use of a wide range of options, machines and auxiliary equipment designed to meet any type of production need and automation level.
The slabs polishing machine Galaxy B220MX is available in different versions characterized by the combination of the following parameters:
Number of spindles
06 – 08 – 10 – 12 – 14 – 16 – 18 – 20
Spindles equipment
Spindle with marble plate with 8 abrasives
Type of finishing
Mirror shine polishing
Honing
Machine components
The slab profile reading is detected by a set of 64 optical sensors positioned at the entrance of the machine. In a separate location, an ultrasonic reader measures the slab thickness. This information is useful for managing the spindle vertical strokes and for the abrasive consumption monitoring.
Rotor is the patented spindle that forms the technological heart of Galaxy B220MX and is made with a one-piece vertical slide assembly with positioning electronically controlled by transducer. It works with a pneumatic counterpressure system.
B220MX polishing plate has a 520 mm diameter and houses 8 abrasives. The plate, built through mechanical operation from a single piece of aluminium, is characterized by reliability and sturdiness. The connection between the Rotor spindle and the polishing plate is performed by a multidirectional joint, which has the advantage of optimizing the action of the abrasives.
