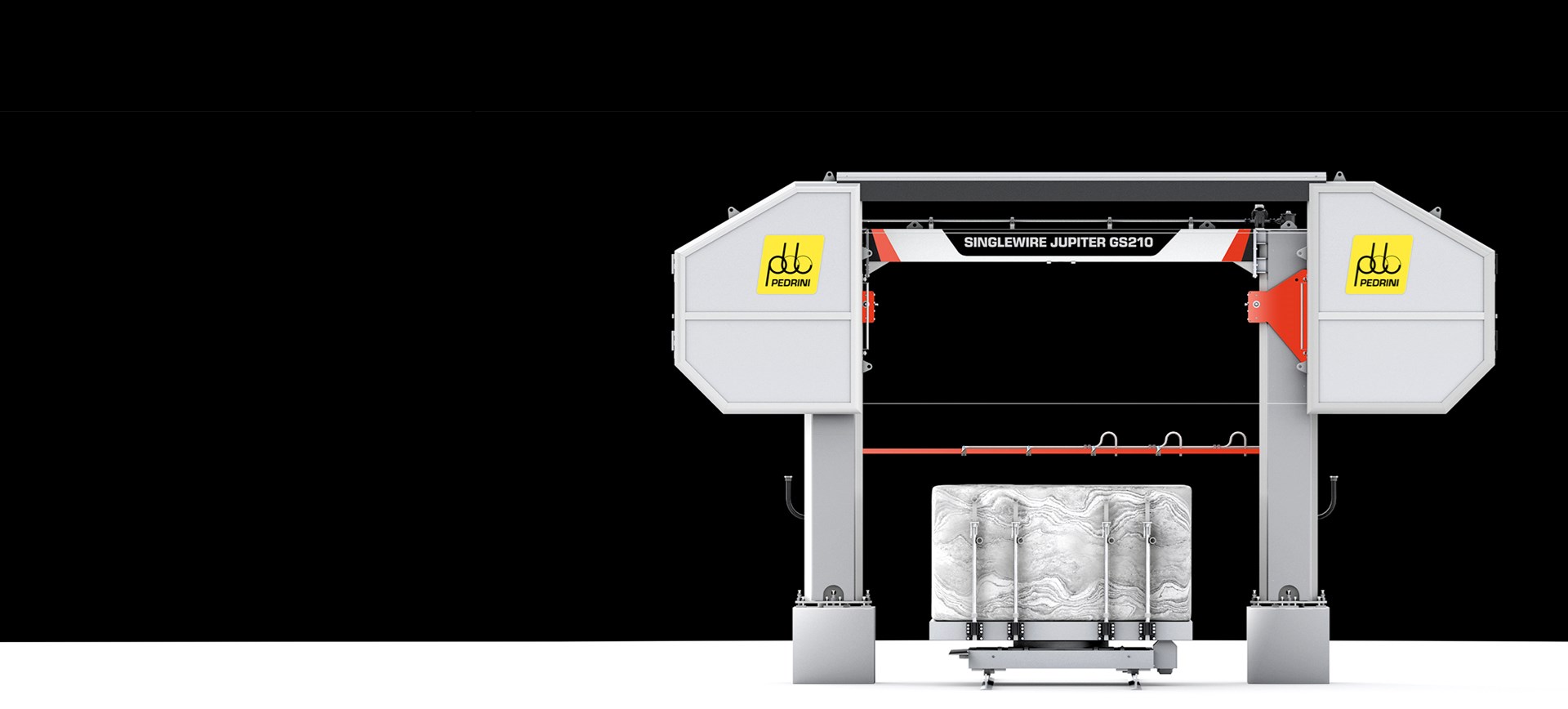

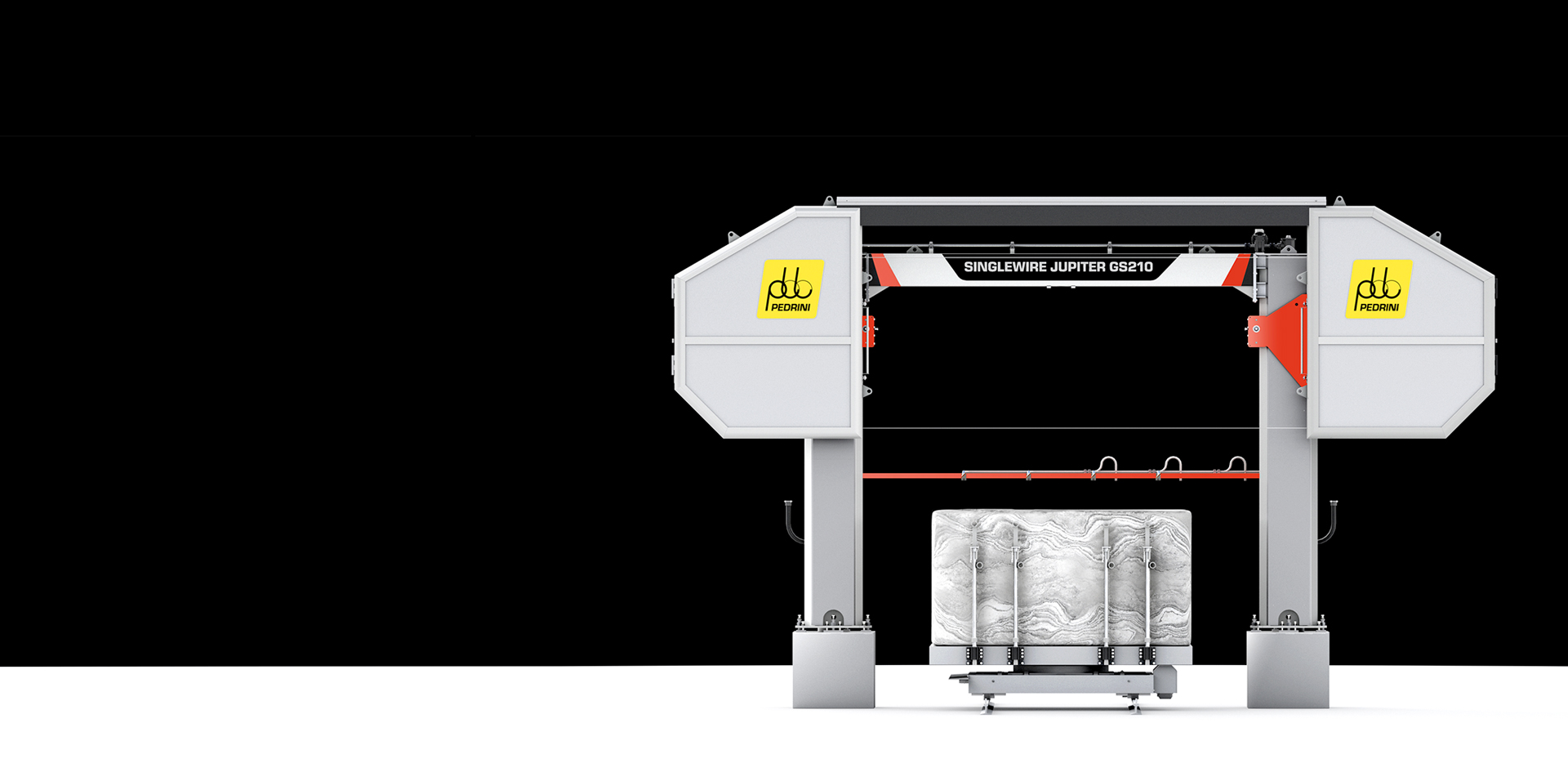

Singlewire Jupiter GS210

Single-wire and two-wire machine

Download the catalogue
Fill out the form and you will receive the catalog by email

Description



SINGLEWIRE JUPITER GS210 is a single-wire and two-wire machine for marble and granite with an open structure used for squaring blocks and cutting slabs and/or large thicknesses of stone materials. The machine iso composed of two columns rigidly fixed to the foundations and a connecting crossbeam, built in normalized steel work.



It works with a closed-circuit diamond wire and is offered in different configurations and with different levels of automation to better suit each customer's needs.



The two large wheels, one for driving and one for tensioning, with a diameter of 2050 mm are made of lightweight ray structure and are mounted on the two moving parts.



It is managed by a control panel equipped with the necessary buttons for manual operation and a PLC with touch-screen panel that allows programming of cutting cycles and control of working parameters.

Key features

Versatile

Available in fixed and self-moving versions to create the "two-wire" combination that halves the block squaring time by being able to perform 2 cuts simultaneously

Flexible

It increases the cutting capacity for heights above 2000 mm

Practical

It facilitates operator access for wire replacement and cleaning thanks to an easily opened cover

To learn more download the catalogue
Fill out the form and you will receive the catalog by email

Machine components

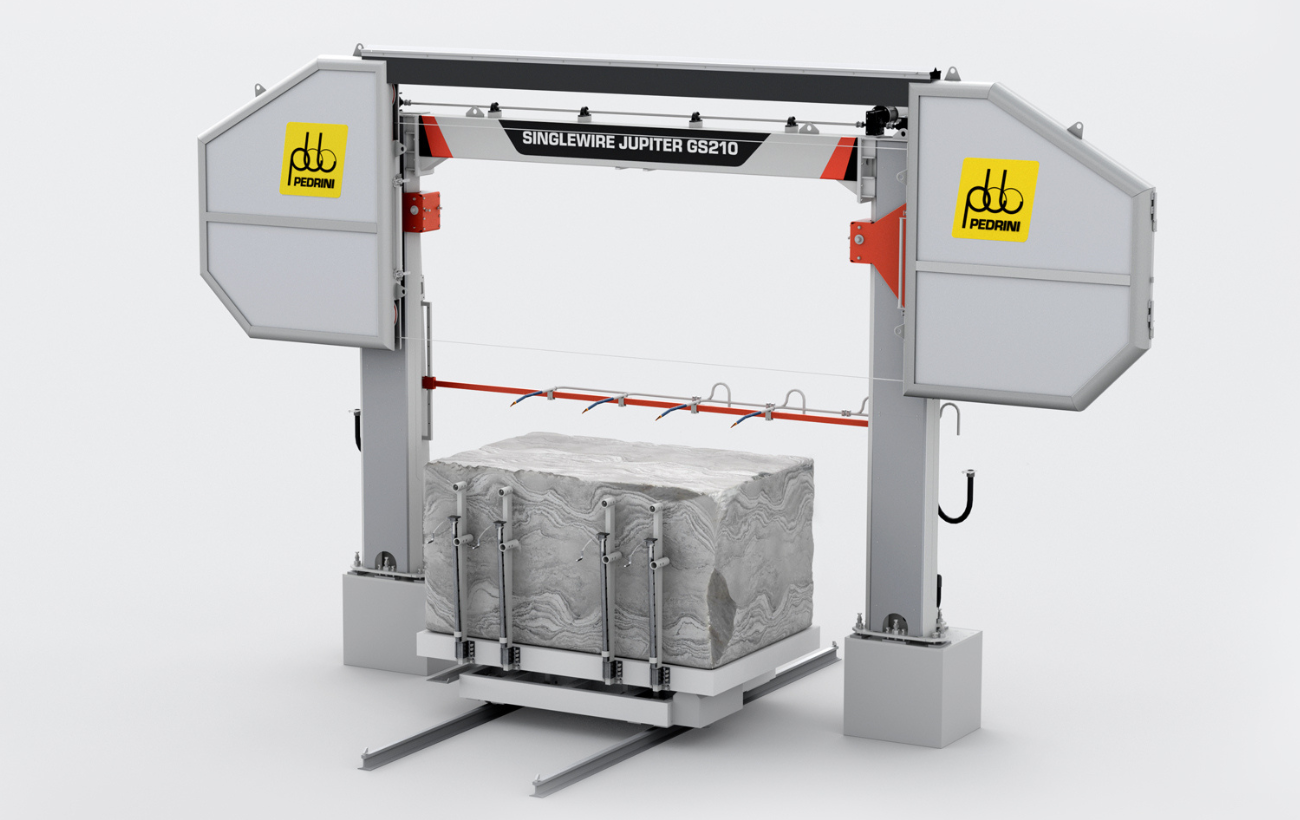

progetto-senza-titolo-2023-05-02t152912-324
Tensioning wheel Driving wheel Block carrier trolley
progetto-senza-titolo-2023-05-02t155007-117
Tensioning wheel

The idle wheel is used for pneumatic tensioning that controls and maintains the tension of the diamond wire during cutting. The large wheel, with a diameter of 2050 mm, is housed in a special superlight opening structure compartment.

progetto-senza-titolo-2023-05-02t154939-215
Driving wheel

The speed of the wire driving wheel is controlled by inverter. The large wheel, with a diameter of 2050 mm, is housed in a special superlight opening structure compartment.

progetto-senza-titolo-2023-05-02t155054-171
Block carrier trolley

The motorized block carrier trolley equipped with the side rails can also be supplied in a version with a motorized rotating table that allows cutting of the 4 sides without having to move the block.

Technical data

Machine
GS210
Technical Data
UM
Value
Maximum cutting length
mm
4000
Space available for the transit of the block
mm
4200
Maximum cutting height
mm
2400
Maximum diamond bead diameter
mm
11
Machine length
mm
10900
