Multiwire Jupiter GS230 TECH12

Multiwire machine for 12 mm-thick granite and marble slabs

Download the catalogue
Fill out the form and you will receive the catalog by email

Description

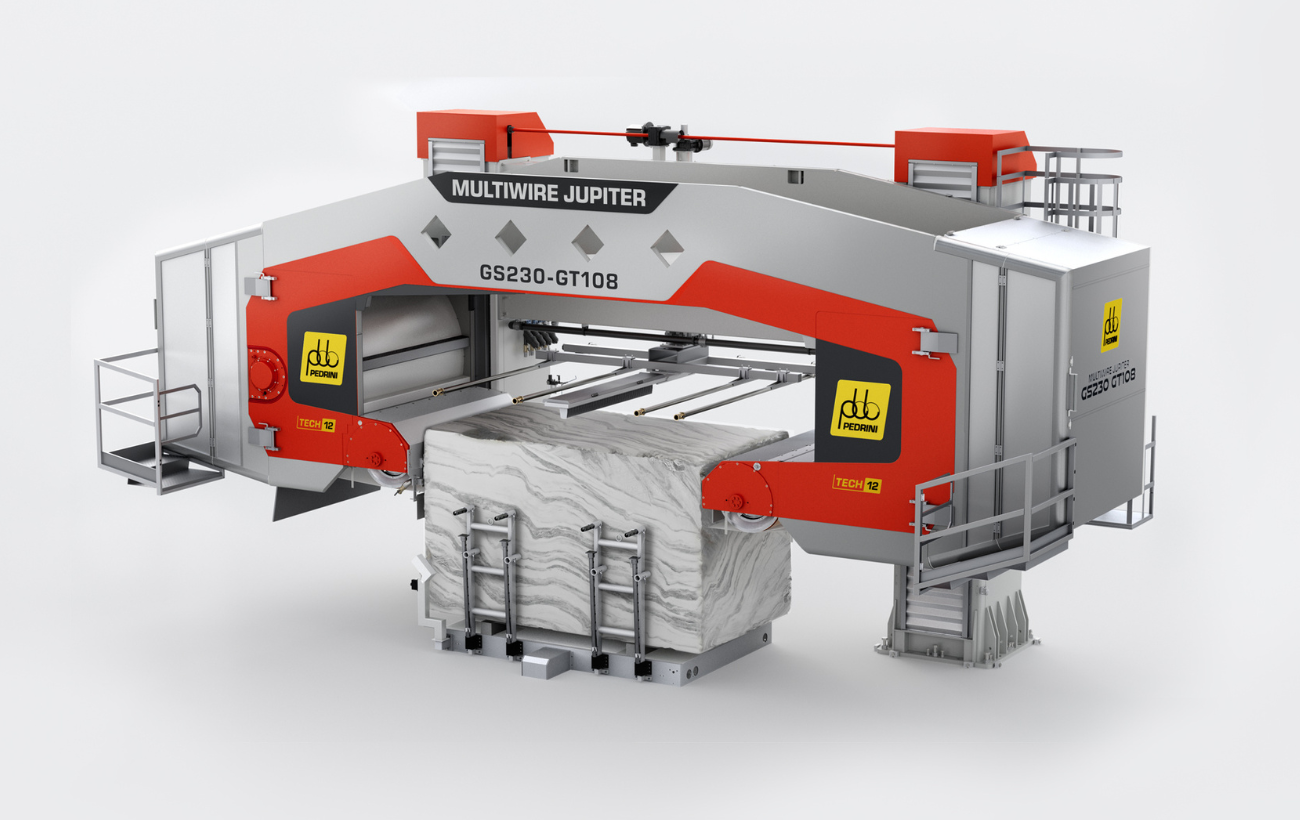

MULTIWIRE JUPITER TECH12 is an open frame multiwire machine for the industrial production of 12 mm-thick granite and marble slabs that performs block fast cutting with a set of 5.3 mm-diameter diamond wires. It is available in several versions that differ for the number of wires: 48, 60, 72 and 108.



MULTIWIRE JUPITER TECH12 is part of a project that Pedrini started in 2019 to industrialize the processing of 12 mm-thick slabs, starting from the cutting of natural stone blocks, including granite, quartzite and marble, to create a more versatile and lightweight finished product.



MULTIWIRE JUPITER TECH12 has 6 patents and it stands out for its flexibility, reliability, absolute state-of-the-art technical solutions and extremely high production capacity. In fact, the new Pedrini multiwire significantly increases the block yield to 55.5 m2 per each cubic meter cut.





The advantages of a 12 mm-thick slab



  • Lower transportation costs
  • Lower installation costs
  • Less effort during all processing and application phases
  • Higher block yield
  • Less waste
  • Further expansion of the fields of application and use of natural stone slabs

Key features

Solid

It represents the perfect synthesis between structural rigidity, dynamic balance and accuracy in displacement and sliding

Versatile

Available in the versions with 48,60, 72 and 108 wires, thus meeting any production requirement

Patented

It has exclusive and advanced patents that make it unique in its kind

Precise

It grants an accurate and thin slab cut

Flexible

It allows to manage the cutting of the block into slabs with different thicknesses

Reliable

It offers technical solutions designed and tested using state-of-the-art methods and materials, without using delicate or risky mechanical elements

Practical

It simplifies the operator activities when managing both the diamond wire and the machine thanks to a "user-friendly" interface

Efficient

It is designed and manufactured to optimize the yield of the block and of the diamond wire

Complete

It easily integrates with plants for slab processing

Configurations

Multiwire Jupiter GS230 TECH12 is manufactured in different versions essentially characterized by a combination of various parameters.

Slab thickness

1,2 – 2 – 3

The slab thickness is chosen according to the required final product

Wire diameter
5,3

The diamond bead diameter is chosen according to the mix of materials to be processed

Number fo wires

48 – 60 – 72 – 108

The number of wires is chosen according to the required production capacity

Pitch
9,3 - 9

The pitch of the wire guide grooves is chosen according to the diameter of the diamond bead, to maximize the block yield

Nominal block yield

55,5 m²/m³

The nominal yield refers to blocks cutting 12 mm-thick slabs with 5.3 mm diamond wires

To learn more download the catalogue
Fill out the form and you will receive the catalog by email

Machine components

macchine-taglio-pietra-naturale-jupiter-tech
Flywheel - Driving wheel Upper wire-guide roller Columns Block carrier trolley Wire tensioning and master tensioning
progetto-senza-titolo-2023-05-02t155943-013
Flywheel - Driving wheel

The flywheel is driven by the multiwire machine's main motor to transmit rotational motion to the diamond wires. Pedrini patented a flywheel covering system using modular bands.

progetto-senza-titolo-2023-05-02t160045-379
Upper wire-guide roller

Wire-guide roller positioned at the top of the machine to maintain the correct spacing between wires and prevent them from touching in the upper return stroke.

progetto-senza-titolo-2023-05-02t160215-647
Columns

The columns and upper crossbeam incorporate the elements for the vertical movement of the wires and for machine securing it to the foundation.

progetto-senza-titolo-2023-05-02t160322-546
Block carrier trolley

The block carrier trolley is an integral part of the machine and is supplied in different sizes depending on the useful cutting width of the multiwire.

progetto-senza-titolo-2023-05-02t162045-102
Wire tensioning and master tensioning

The diamond wire tensioner is the technological heart of the multiwire and is one of the patents Pedrini has been most dedicated to.

The Master allows the first pre-tensioning of the diamond wires to be carried out uniformly.

Technical data

Machine
GS230-GT48
GS230-GT60
GS230-GT72
GS230-GT108
Technical Data
UM
P90 ø 5,3
P93 Ø 5,3
Machine length
mm
11900
11900
Machine height
mm
6900
6900
Approximate mass
Kg
40000
40000
Maximum cutting length
mm
3600
3600
Maximum cutting height
mm
2100
2100
Slabs nominal thickness
cm
1,2 ÷ 3
1,2 ÷ 3
Wires set width
mm
851
880
