Multiwire Jupiter GS230

Description

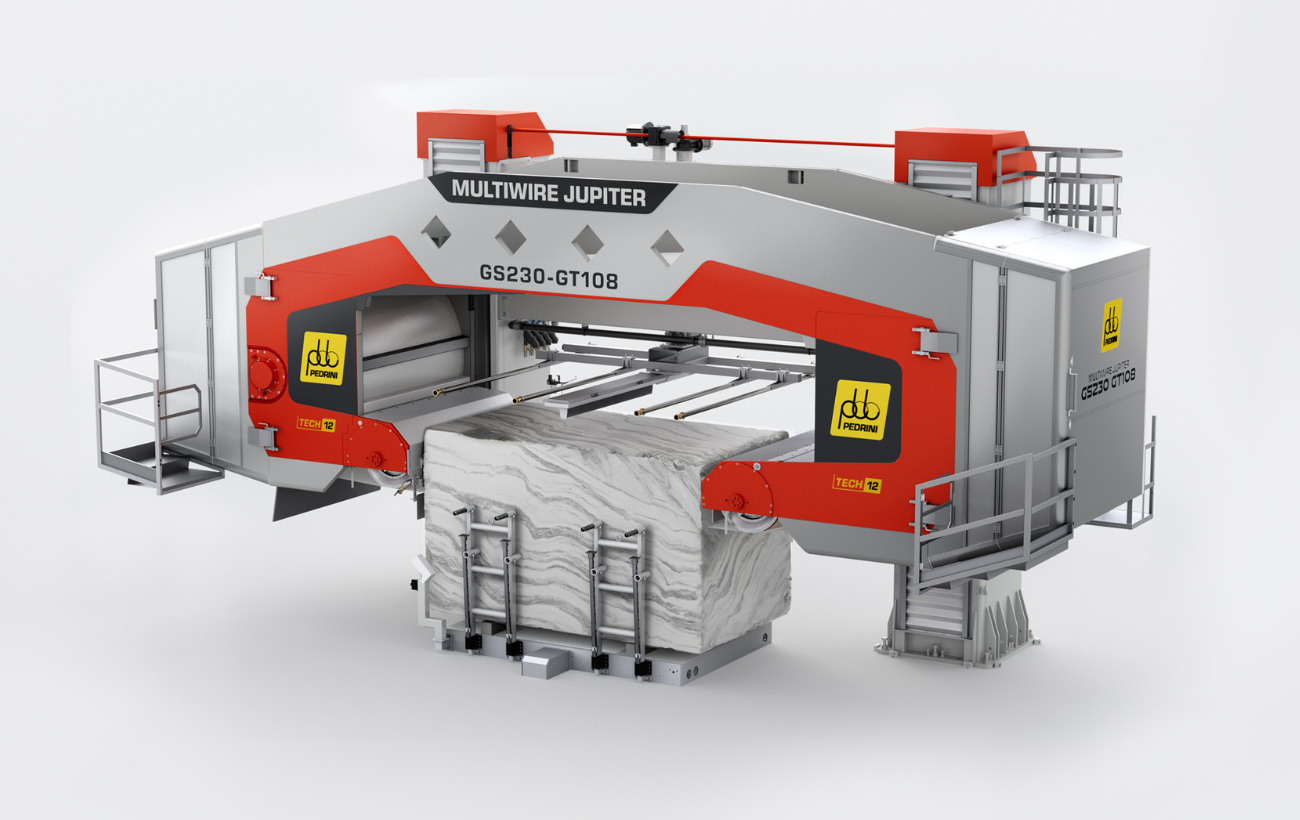

MULTIWIRE JUPITER GS230 is a multiwire machine manufactured by Pedrini that performs block cutting with a series of diamond wires for industrial production of granite slabs. It is available in several versions that differ in the maximum number of wires and for the diameter of diamond wires (7.3 mm - 6.3 mm - 5.3 mm).

With GS230 it is possible to produce slabs with thicknesses between 2 and 10 cm simultaneously from the same block.

The flywheel of the multiwire machine rotates the diamond wires which move vertically along two columns to cut the block into slabs. The diamond wires are tensioned by the combined action of the machine's rigid structure and a hydraulic pressure system.

The wires are interspaced to obtain slab thickness by means of special grooves in the flywheel covers and of the wire-guide rollers.

The automatic cutting cycles are programmed from a monitor using a "user-friendly" graphical interface.

It is characterized by its flexibility, reliability, absolute state-of-the-art technical solutions and very high production capacity.

Key features

Solid

It represents the perfect synthesis between structural rigidity, dynamic balance and accuracy in displacement and sliding

Versatile

Available in the versions from 16 to 80 wires, thus meeting any production requirement

Patented

It has exclusive and advanced patents that make it unique in its kind

Precise

It grants an accurate slab cut

Flexible

It allows to manage the cutting of the block into slabs with different thicknesses

Reliable

It offers technical solutions designed and tested using state-of-the-art methods and materials, without using delicate or risky mechanical elements

Practical

It simplifies the operator activities when managing both the diamond wire and the machine thanks to a "user-friendly" interface

Efficient

It is designed and manufactured to optimize the yield of the block and of the diamond wire

Complete

It easily integrates with plants for slab processing

Configurations

Multiwire Jupiter is manufactured in different versions essentially characterized by a combination of various parameters.

Slab thickness

2 - 3
The slab thickness is chosen according to the required final product

Wire diameter
7,3 - 6,3 - 5,3
The diamond bead diameter is chosen according to the mix of materials to be processed

Number of wires
16 - 24 - 32 - 40 - 48 - 56 - 64 - 72 - 80
The number of wires is chosen according to the required production capacity

Pitch
9,6 - 9,3 - 9
The pitch of the wire guide grooves is chosen according to the diameter of the diamond bead, to maximize the block yield

Nominal block yield

5,3 mm wire diameter – 37,04 m²/m³

6,3 mm wire diameter – 35,84 m²/m³

7,3 mm wire diameter – 34,72 m²/m³

The nominal yield refers to blocks cutting 2 cm-thick slabs

To learn more download the catalogue

Machine components

macchine-taglio-pietra-naturale-jupiter-tech

Technical data

Machine

GS230-GF16

GS230-GF24

GS230-GF32

GS230-GF40

GS230-GF48

GS230-GF56

GS230-GF64

GS230-GF72

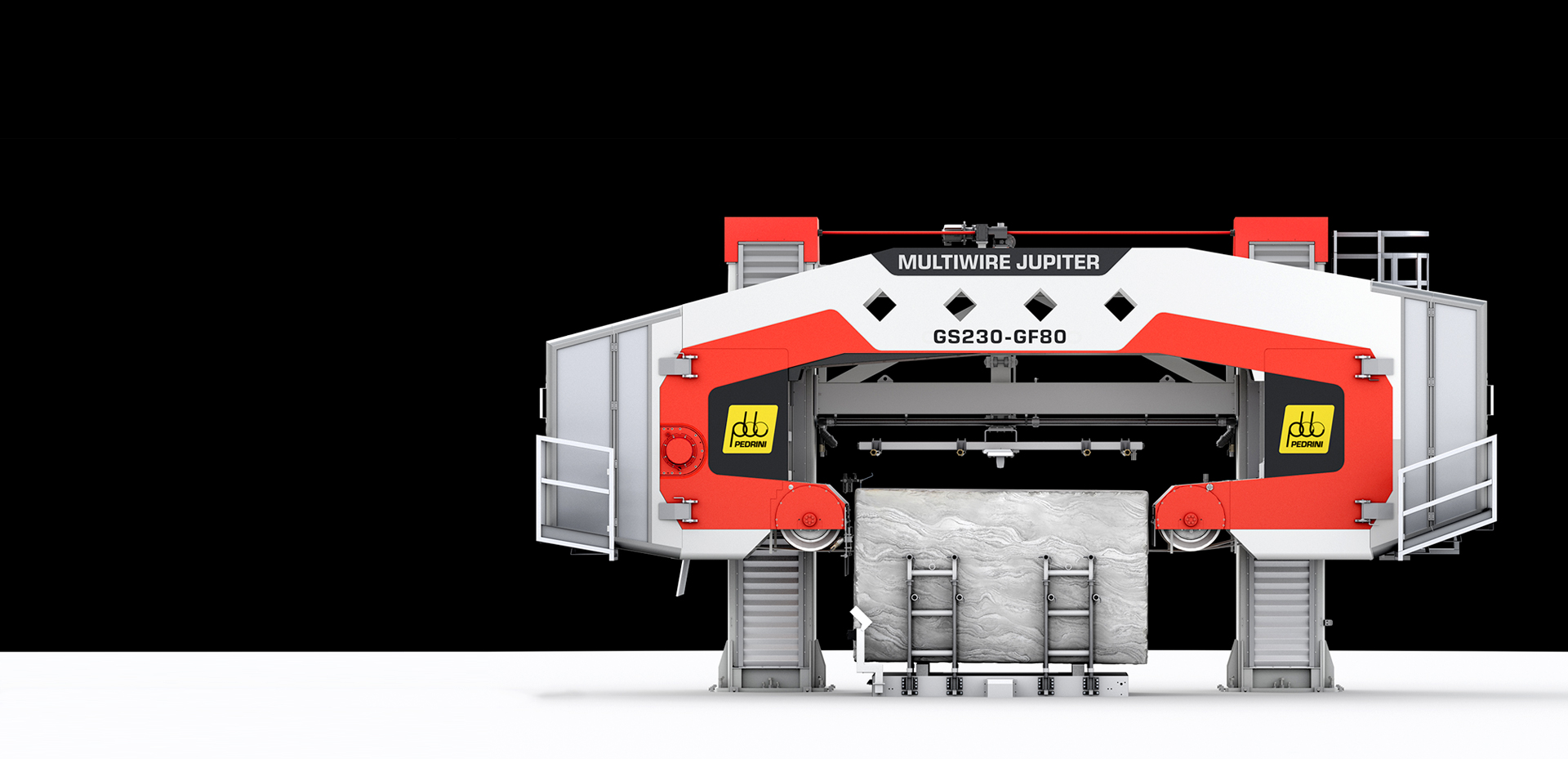

GS230-GF80

Technical Data

P90 ø 5,3

P93 ø 6,3

P96 ø 7,3

Maximum cutting height

2100

Machine length

11900

Machine height

6900

Maximum cutting length

3600

Approximate mass

25000

Slabs nominal thickness

2 ÷ 3

Wires set width

410

425

440

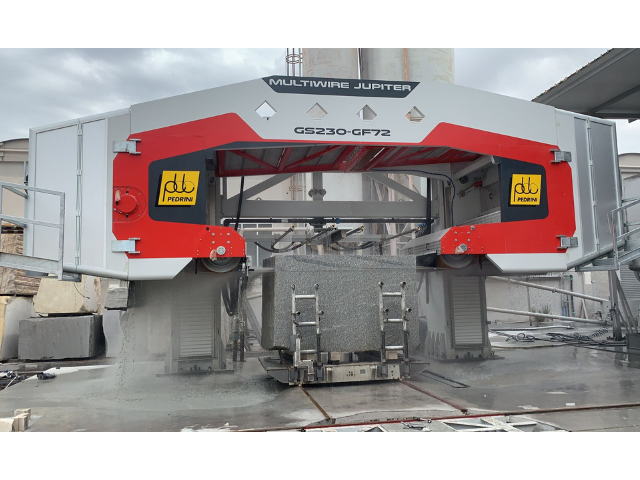

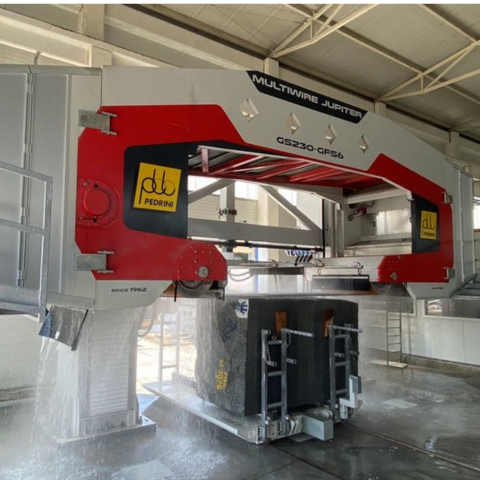

Photo & Video gallery

Macchina multifilo per il taglio di blocchi di granito

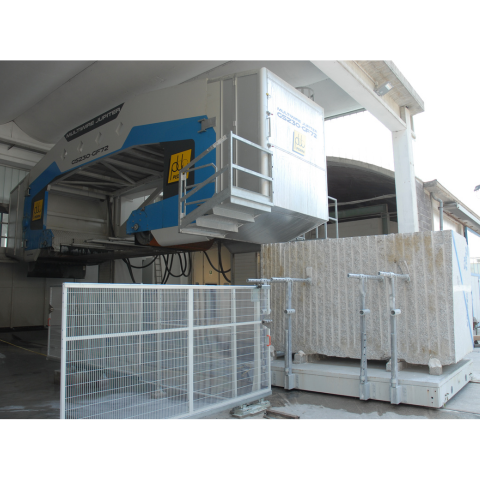

progetto-senza-titolo-2023-04-26t150627-076
