GALAXY B220MX-T2/T3

Multi-beam polishing machine for marble

Download the catalogue
Fill out the form and you will receive the catalog by email

Description



Pedrini introduces the innovative GALAXY MX-T2 and GALAXY MX-T3, a new version of the marble slab polishing machine available in models with two and three moving beams, designed to perfect the polishing process.



The moving beams can be managed with different translation speeds, optimizing the performance of tools in all stages of the honing, pre-polishing, and polishing process.



GALAXY MX moves its spindle-holder beams synchronously or independently, allowing for simultaneous processing of slabs with different widths without the need to completely empty the machine at each size change, as is the case with single-beam polishers.





Versatility at your fingertips


For its multi-beam polishing machine, Pedrini has developed QuickEase, the easy and intuitive software that enhance production. With its user-friendly interface and visually intuitive design, QuickEase allows operators toeffortlessly manage all production-related tasks with remarkable ease, speed, and versatility.

Key features

Efficient

Increased production capacity with reduced downtime

Effective

Tools optimisation thanks to different beam speeds

Innovative

State-of-the-art automation technology

Configurations

The Galaxy B220MX-T multi-beam polishing machine is available in two versions:

B220MX-18-T2:

equipped with 2 moving beams, each with 6 polishing plates

B220MX-18-T3:

equipped with 3 moving beams, each with 6 polishing plates

To learn more download the catalogue
Fill out the form and you will receive the catalog by email

Machine components

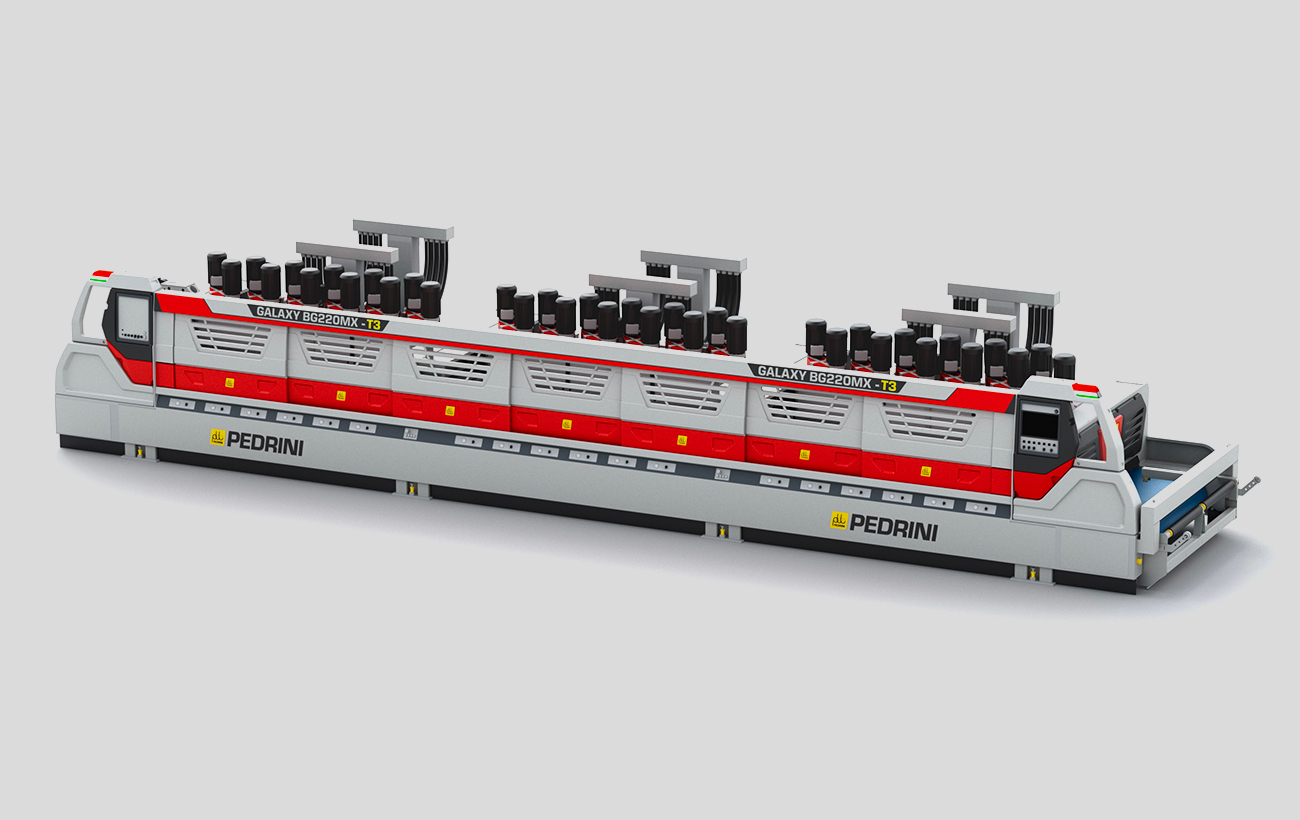

render-bg220mx-t3
3 moving beams Rotor spindles Polishing plates
progetto-senza-titolo-2023-05-02t164005-570
3 moving beams

The three beams can move synchronously or independently, allowing to simultaneously manage slabs with different widths. The beams are moved by means of pinion/rack systems driven by inverter-controlled motors.

progetto-senza-titolo-2023-05-02t165022-043
Rotor spindles

Rotor is the patented spindle that forms the technological heart of Galaxy B220MX-T2/T3 and is made with a one-piece vertical slide assembly with positioning electronically controlled by transducer. It works with a pneumatic counterpressure system.

progetto-senza-titolo-2023-05-02t164912-004
Polishing plates

B220MX-T2/T3 polishing plate has a 520 mm diameter and houses 8 abrasives. The plate, built through mechanical operation from a single piece of aluminium, is characterized by reliability and sturdiness. The connection between the Rotor spindle and the polishing plate is performed by a multidirectional joint, which has the advantage of optimizing the action of the abrasives.

Technical data

Machine
Technical data
Technical Data
UM
Number of polishing heads
-
12
18
Maximum slabs width
mm
2100
2100
Maximum slabs thickness
mm
100
100
Number of moving beams
-
2
3
Number of polishing heads for each beam
-
6
6
Number of bridges for mobile beam movement
-
3
4
Beam translation speed
m/min
60
60
Conveyor system forward speed
m/min
0,3÷3
0,3÷3
Polishing head motorization
kW
11 (5,5x2)
11 (5,5x2)
Cleaning brush power (optional)
kW
1,5
1,5
Installed electrical power
kW
155
225
Cooling water (min. pressure 1,5 bar)
l/min
360
540
Compressed air (min. pressure 6 bar)
l/min
960
1440
Machine length
mm
10200
14100
Machine width
mm
3100
3100
Machine height
mm
2900
2900
Approximate mass
kg
24500
34000

Related machines

anteprimamarmo
Polishing and finishing
Marble polishing lines

Polishing plants for slabs
costruttori-macchine-marmo-galaxy
Polishing and finishing
Galaxy B220MX

Polishing machine for marble slabs

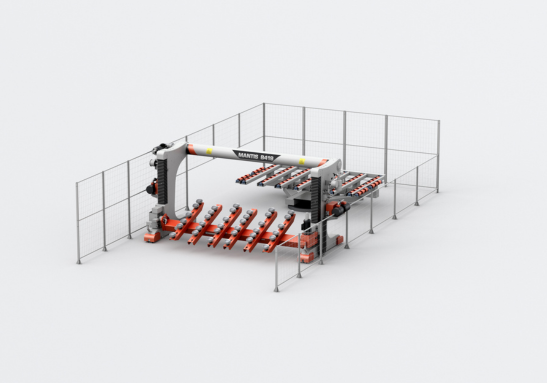

progetto-senza-titolo-2023-08-29t144058-009
